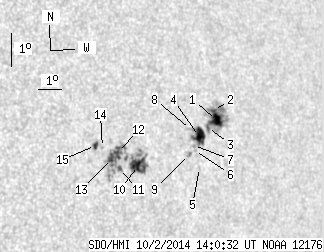

SDO HMI 2014-10-02 14:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 49.99 | 149.42 | 35.56 | 106.47 | 7.03 | 210.17 | 46.31 | 273.36 | 0.7209 | -150.0 | 25.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-02 14:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.86 | 49.90 | 7.30 | 36.98 | 7.54 | 212.29 | 48.43 | 274.19 | 0.7460 | -851.9 | -284.0 | |
| 1.76 | -1.00 | 1.30 | -1.00 | 7.85 | 212.20 | 48.34 | 274.60 | 0.7449 | -757.4 | 999999 | |
| 0.62 | -1.00 | 0.45 | -1.00 | 7.37 | 211.85 | 48.00 | 273.93 | 0.7410 | -738.3 | 999999 | |
| 12.14 | 16.98 | 8.86 | 12.39 | 7.13 | 211.46 | 47.60 | 273.59 | 0.7365 | -877.7 | -634.3 | |
| 0.00 | 1.23 | 0.00 | 0.90 | 6.21 | 211.34 | 47.48 | 272.32 | 0.7357 | -623.0 | -475.4 | |
| 0.00 | 1.14 | 0.00 | 0.83 | 6.73 | 211.18 | 47.32 | 273.03 | 0.7335 | -421.0 | -442.1 | |
| 0.00 | 0.97 | 0.00 | 0.70 | 6.89 | 211.15 | 47.30 | 273.23 | 0.7331 | -322.0 | -331.0 | |
| 0.00 | 2.11 | 0.00 | 1.53 | 7.38 | 211.09 | 47.23 | 273.90 | 0.7320 | -728.0 | -591.8 | |
| 0.00 | 2.46 | 0.00 | 1.78 | 6.63 | 210.94 | 47.09 | 272.87 | 0.7307 | -548.0 | -520.1 | |
| 14.52 | 70.23 | 10.09 | 48.39 | 6.49 | 208.70 | 44.84 | 272.51 | 0.7037 | 578.6 | 432.7 | |
| 1.14 | -10.00 | 0.78 | -10.00 | 6.47 | 207.89 | 44.03 | 272.42 | 0.6936 | 665.4 | 999999 | |
| 4.05 | -10.00 | 2.77 | -10.00 | 6.95 | 207.86 | 44.01 | 273.12 | 0.6930 | 666.4 | 999999 | |
| 3.70 | -10.00 | 2.52 | -10.00 | 6.79 | 207.59 | 43.73 | 272.87 | 0.6897 | 898.3 | 999999 | |
| 0.00 | 0.53 | 0.00 | 0.36 | 7.15 | 207.25 | 43.40 | 273.38 | 0.6853 | 718.0 | 639.0 | |
| 2.20 | 3.87 | 1.49 | 2.61 | 7.23 | 206.97 | 43.12 | 273.48 | 0.6816 | 753.2 | 586.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
