SDO HMI 2014-10-02 14:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.28 | 15.14 | 3.94 | 11.36 | -12.99 | 118.98 | -44.87 | 113.79 | 0.7536 | 460.8 | 327.2 | |
|
previous
or next observation for the same group /

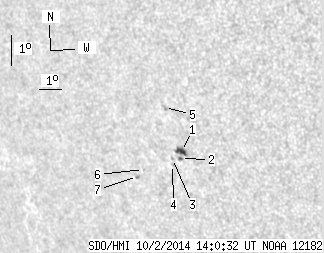

back to the solar disc SDO HMI 2014-10-02 14:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.58 | 6.78 | 3.41 | 5.05 | -13.01 | 119.40 | -44.46 | 114.02 | 0.7494 | 741.0 | 582.6 | |
| 0.70 | 2.02 | 0.53 | 1.51 | -13.24 | 119.30 | -44.55 | 114.26 | 0.7514 | 495.5 | 382.7 | |
| 0.00 | 0.97 | 0.00 | 0.73 | -13.27 | 118.94 | -44.91 | 114.12 | 0.7552 | 434.0 | 352.1 | |
| 0.00 | 1.06 | 0.00 | 0.80 | -13.46 | 118.90 | -44.96 | 114.34 | 0.7565 | 381.0 | 283.4 | |
| 0.00 | 2.46 | 0.00 | 1.83 | -11.66 | 118.96 | -44.90 | 112.12 | 0.7485 | 640.0 | 582.1 | |
| 0.00 | 0.44 | 0.00 | 0.34 | -13.74 | 117.54 | -46.31 | 114.05 | 0.7715 | 263.0 | 233.0 | |
| 0.00 | 1.41 | 0.00 | 1.10 | -13.99 | 117.21 | -46.65 | 114.21 | 0.7759 | -388.0 | -483.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
