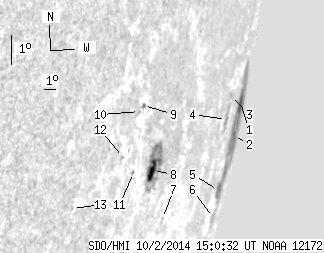

SDO HMI 2014-10-02 15:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.42 | 161.38 | 147.86 | 781.45 | -11.11 | 245.34 | 82.03 | 257.93 | 0.9917 | -101.1 | 51.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-02 15:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.22 | 86.50 | 47.84 | 607.00 | -10.17 | 247.61 | 84.30 | 259.21 | 0.9974 | -430.9 | 22.4 | |
| 8.01 | -1.00 | 52.07 | -1.00 | -11.11 | 247.21 | 83.91 | 258.22 | 0.9971 | 65.0 | 999999 | |
| 0.00 | 2.38 | 0.00 | 8.97 | -9.55 | 244.48 | 81.18 | 259.40 | 0.9920 | 417.0 | 354.4 | |
| 0.00 | 9.77 | 0.00 | 36.39 | -10.27 | 244.29 | 80.99 | 258.66 | 0.9918 | 313.0 | 254.9 | |
| 5.72 | -1.00 | 29.95 | -1.00 | -12.68 | 246.01 | 82.70 | 256.50 | 0.9957 | 199.3 | 999999 | |
| 0.00 | 5.54 | 0.00 | 30.41 | -13.57 | 246.44 | 83.14 | 255.67 | 0.9965 | 515.0 | 383.7 | |
| 0.00 | 0.70 | 0.00 | 1.43 | -12.52 | 237.14 | 73.84 | 255.25 | 0.9707 | -230.0 | -216.0 | |
| 9.94 | 51.30 | 17.19 | 89.48 | -10.78 | 234.92 | 71.62 | 256.63 | 0.9595 | -283.1 | -18.2 | |
| 0.53 | 1.76 | 0.81 | 2.70 | -8.55 | 232.99 | 69.69 | 258.58 | 0.9475 | 410.0 | 283.4 | |
| 0.00 | 0.88 | 0.00 | 1.33 | -8.70 | 232.70 | 69.40 | 258.37 | 0.9461 | 235.0 | 300.6 | |
| 0.00 | 1.23 | 0.00 | 1.93 | -10.63 | 233.06 | 69.76 | 256.43 | 0.9500 | -433.0 | -398.2 | |
| 0.00 | 0.62 | 0.00 | 0.91 | -10.03 | 231.90 | 68.60 | 256.82 | 0.9431 | -423.0 | -380.0 | |
| 0.00 | 0.70 | 0.00 | 0.90 | -11.24 | 228.42 | 65.12 | 254.83 | 0.9236 | -365.0 | -332.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
