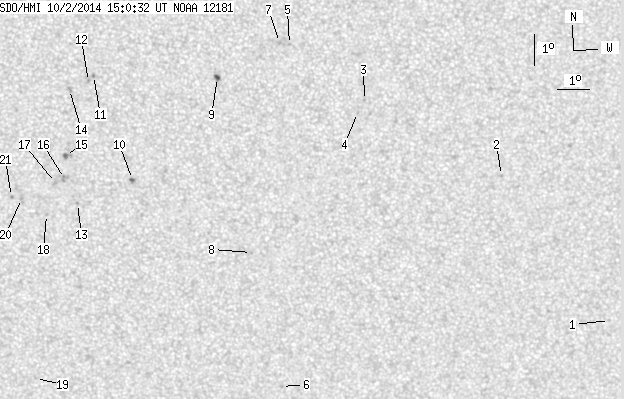

SDO HMI 2014-10-02 15:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.90 | 34.07 | 1.52 | 18.01 | -13.12 | 160.94 | -2.36 | 173.17 | 0.3482 | 179.1 | -38.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-02 15:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.44 | -18.39 | 175.60 | 12.30 | 205.67 | 0.4685 | 631.0 | 452.0 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -13.59 | 171.92 | 8.62 | 202.91 | 0.3756 | 720.0 | 548.5 | |
| 0.00 | 0.62 | 0.00 | 0.32 | -11.14 | 167.62 | 4.32 | 193.62 | 0.3153 | 832.0 | 711.1 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -11.52 | 167.41 | 4.11 | 192.71 | 0.3206 | 761.0 | 648.5 | |
| 0.00 | 0.88 | 0.00 | 0.45 | -9.37 | 165.32 | 2.02 | 187.17 | 0.2792 | 922.0 | 755.0 | |
| 0.00 | 1.14 | 0.00 | 0.64 | -20.42 | 165.16 | 1.85 | 183.81 | 0.4578 | 757.0 | 636.4 | |
| 0.00 | 1.41 | 0.00 | 0.73 | -9.30 | 165.01 | 1.71 | 186.12 | 0.2775 | 860.0 | 727.1 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -15.98 | 164.18 | 0.88 | 182.19 | 0.3866 | 729.0 | 602.6 | |
| 1.58 | 2.73 | 0.82 | 1.41 | -10.39 | 163.13 | -0.17 | 179.41 | 0.2943 | -1043.6 | -799.7 | |
| 0.62 | 2.29 | 0.33 | 1.21 | -13.63 | 160.50 | -2.81 | 172.18 | 0.3511 | 920.7 | 638.4 | |
| 0.00 | 1.32 | 0.00 | 0.69 | -10.34 | 159.34 | -3.96 | 166.90 | 0.3010 | 839.0 | 718.2 | |
| 0.00 | 1.32 | 0.00 | 0.69 | -10.53 | 159.19 | -4.11 | 166.55 | 0.3047 | 969.0 | 767.6 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -14.41 | 158.78 | -4.52 | 167.99 | 0.3685 | -751.0 | -557.1 | |
| 0.00 | 2.82 | 0.00 | 1.47 | -10.79 | 158.60 | -4.70 | 164.94 | 0.3112 | 794.0 | 579.7 | |
| 0.70 | 3.87 | 0.37 | 2.04 | -12.88 | 158.44 | -4.86 | 166.10 | 0.3453 | -1115.8 | -822.5 | |
| 0.00 | 4.05 | 0.00 | 2.15 | -13.61 | 158.39 | -4.91 | 166.48 | 0.3572 | -804.0 | -743.3 | |
| 0.00 | 2.73 | 0.00 | 1.45 | -13.74 | 158.11 | -5.19 | 165.82 | 0.3604 | -877.0 | -732.0 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -14.77 | 157.81 | -5.50 | 165.75 | 0.3778 | -683.0 | -594.5 | |
| 0.00 | 0.79 | 0.00 | 0.44 | -20.18 | 157.28 | -6.02 | 167.67 | 0.4631 | 678.0 | 507.0 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -14.27 | 157.04 | -6.26 | 163.48 | 0.3732 | -770.0 | -694.8 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -14.21 | 156.73 | -6.57 | 162.66 | 0.3737 | -592.0 | -584.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
