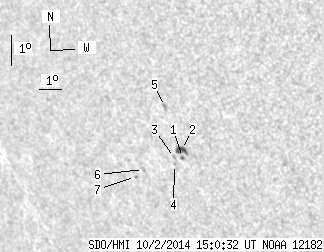

SDO HMI 2014-10-02 15:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.67 | 16.30 | 3.44 | 12.12 | -12.98 | 118.92 | -44.38 | 114.03 | 0.7484 | 450.3 | 341.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-02 15:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.53 | 1.50 | 0.39 | 1.11 | -13.22 | 119.41 | -43.89 | 114.55 | 0.7444 | 582.7 | 493.1 | |
| 4.14 | 7.13 | 3.05 | 5.26 | -12.96 | 119.42 | -43.88 | 114.24 | 0.7431 | 749.7 | 620.2 | |
| 0.00 | 1.41 | 0.00 | 1.05 | -13.25 | 119.06 | -44.25 | 114.41 | 0.7482 | 465.0 | 370.8 | |
| 0.00 | 0.62 | 0.00 | 0.46 | -13.47 | 119.00 | -44.30 | 114.67 | 0.7497 | 476.0 | 384.0 | |
| 0.00 | 2.64 | 0.00 | 1.94 | -11.64 | 118.98 | -44.33 | 112.36 | 0.7423 | 710.0 | 582.9 | |
| 0.00 | 1.94 | 0.00 | 1.48 | -13.75 | 117.58 | -45.73 | 114.34 | 0.7656 | -38.0 | -51.5 | |
| 0.00 | 1.06 | 0.00 | 0.82 | -14.01 | 117.15 | -46.15 | 114.46 | 0.7710 | -459.0 | -461.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
