SDO HMI 2014-10-02 16:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 94.14 | 497.11 | 47.81 | 252.42 | -1.52 | 153.24 | -9.51 | 130.87 | 0.2189 | 598.4 | 301.0 | |
|
previous
or next observation for the same group /

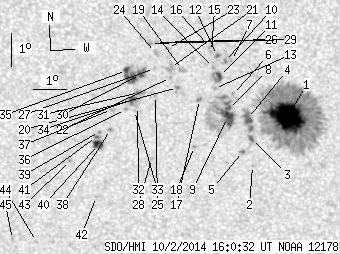

back to the solar disc SDO HMI 2014-10-02 16:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.92 | 316.65 | 30.32 | 160.21 | -1.65 | 154.37 | -8.38 | 134.49 | 0.2051 | 1420.7 | 448.0 | |
| 0.00 | 0.88 | 0.00 | 0.45 | -3.16 | 153.30 | -9.45 | 135.81 | 0.2363 | 606.0 | 515.1 | |
| 0.88 | 4.22 | 0.45 | 2.15 | -2.34 | 153.28 | -9.48 | 133.21 | 0.2267 | 905.7 | 620.7 | |
| 4.31 | 14.43 | 2.19 | 7.33 | -1.73 | 153.16 | -9.59 | 130.86 | 0.2213 | 1098.1 | 815.7 | |
| 0.35 | 1.76 | 0.18 | 0.90 | -2.74 | 153.00 | -9.75 | 133.64 | 0.2349 | 890.5 | 746.1 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -1.02 | 152.71 | -10.05 | 127.02 | 0.2194 | 910.0 | 754.4 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 0.01 | 152.68 | -10.07 | 123.03 | 0.2096 | 811.0 | 637.8 | |
| 1.67 | 54.29 | 0.85 | 27.63 | -1.44 | 152.58 | -10.17 | 128.19 | 0.2256 | 1112.3 | 334.6 | |
| 10.82 | -8.00 | 5.51 | -8.00 | -1.71 | 152.55 | -10.20 | 129.03 | 0.2290 | 1031.3 | 999999 | |
| 0.00 | 2.82 | 0.00 | 1.43 | -0.02 | 152.46 | -10.29 | 122.61 | 0.2130 | 1112.0 | 958.7 | |
| 2.64 | 8.62 | 1.34 | 4.38 | -0.48 | 152.31 | -10.44 | 123.97 | 0.2195 | 1175.3 | 829.0 | |
| 0.44 | 1.67 | 0.22 | 0.85 | 0.15 | 152.25 | -10.50 | 121.37 | 0.2144 | 1097.0 | 1023.9 | |
| 0.00 | 1.67 | 0.00 | 0.85 | -0.84 | 152.16 | -10.59 | 124.92 | 0.2252 | 657.0 | 532.5 | |
| 0.00 | 1.32 | 0.00 | 0.67 | -0.21 | 152.13 | -10.62 | 122.48 | 0.2195 | 746.0 | 601.1 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 0.27 | 152.07 | -10.68 | 120.45 | 0.2160 | 889.0 | 703.9 | |
| 0.00 | 1.85 | 0.00 | 0.94 | 0.39 | 152.04 | -10.71 | 119.90 | 0.2154 | 738.0 | 644.0 | |
| 0.00 | 2.46 | 0.00 | 1.26 | -1.19 | 151.70 | -11.05 | 124.98 | 0.2350 | 898.0 | 730.8 | |
| 0.00 | 1.50 | 0.00 | 0.77 | -2.62 | 151.53 | -11.22 | 129.24 | 0.2521 | 872.0 | 717.8 | |
| 0.00 | 3.87 | 0.00 | 1.97 | -0.29 | 151.18 | -11.57 | 120.55 | 0.2340 | 744.0 | 676.5 | |
| 0.00 | 1.41 | 0.00 | 0.72 | -0.84 | 151.03 | -11.73 | 122.17 | 0.2411 | 906.0 | 724.1 | |
| 0.00 | 5.63 | 0.00 | 2.87 | -0.24 | 150.81 | -11.94 | 119.57 | 0.2389 | -61.0 | -66.1 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -0.54 | 150.81 | -11.94 | 120.65 | 0.2415 | 603.0 | 435.1 | |
| 0.00 | 1.76 | 0.00 | 0.90 | 0.33 | 150.72 | -12.03 | 117.26 | 0.2355 | -860.0 | -622.8 | |
| 0.00 | 2.29 | 0.00 | 1.17 | 0.20 | 150.35 | -12.40 | 117.02 | 0.2421 | -1055.0 | -723.3 | |
| 0.00 | 0.79 | 0.00 | 0.41 | -1.10 | 150.35 | -12.40 | 121.58 | 0.2532 | -924.0 | -787.4 | |
| 0.00 | 0.79 | 0.00 | 0.40 | 0.50 | 150.35 | -12.40 | 115.90 | 0.2397 | -858.0 | -641.8 | |
| 0.00 | 1.67 | 0.00 | 0.85 | -0.28 | 150.32 | -12.43 | 118.71 | 0.2465 | -770.0 | -597.2 | |
| 0.00 | 0.79 | 0.00 | 0.41 | -3.01 | 150.21 | -12.54 | 127.26 | 0.2737 | -949.0 | -876.3 | |
| 0.00 | 1.85 | 0.00 | 0.94 | 0.47 | 150.20 | -12.55 | 115.74 | 0.2423 | -1118.0 | -854.5 | |
| 2.38 | 24.55 | 1.22 | 12.58 | -0.47 | 149.89 | -12.86 | 118.53 | 0.2545 | -1156.3 | -921.1 | |
| 0.00 | 4.22 | 0.00 | 2.17 | -1.02 | 149.86 | -12.89 | 120.31 | 0.2596 | -1172.0 | -915.6 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -1.44 | 149.79 | -12.96 | 121.57 | 0.2643 | -480.0 | -411.9 | |
| 0.00 | 0.44 | 0.00 | 0.23 | -1.57 | 149.70 | -13.05 | 121.78 | 0.2667 | -549.0 | -475.8 | |
| 2.90 | 5.63 | 1.49 | 2.89 | -1.24 | 149.64 | -13.11 | 120.59 | 0.2646 | -1123.2 | -825.8 | |
| 1.76 | -30.00 | 0.90 | -30.00 | -0.36 | 149.46 | -13.29 | 117.35 | 0.2600 | -944.7 | 999999 | |
| 0.00 | 1.32 | 0.00 | 0.68 | -1.54 | 149.42 | -13.33 | 121.15 | 0.2705 | -899.0 | -764.3 | |
| 0.00 | 2.82 | 0.00 | 1.45 | -1.55 | 148.99 | -13.76 | 120.36 | 0.2768 | -762.0 | -670.6 | |
| 0.00 | 1.58 | 0.00 | 0.82 | -2.16 | 148.95 | -13.80 | 122.15 | 0.2827 | -1075.0 | -846.2 | |
| 0.00 | 1.32 | 0.00 | 0.68 | -2.23 | 148.61 | -14.14 | 121.71 | 0.2882 | -836.0 | -728.6 | |
| 5.54 | 11.09 | 2.87 | 5.74 | -2.63 | 148.58 | -14.17 | 122.80 | 0.2923 | -1052.1 | -771.3 | |
| 0.53 | -40.00 | 0.27 | -40.00 | -2.39 | 148.52 | -14.23 | 121.99 | 0.2909 | -1038.3 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.37 | -4.21 | 148.49 | -14.26 | 126.95 | 0.3088 | 698.0 | 567.0 | |
| 0.00 | 1.32 | 0.00 | 0.69 | -3.14 | 147.70 | -15.05 | 122.62 | 0.3092 | 817.0 | 677.2 | |
| 0.00 | 1.14 | 0.00 | 0.60 | -5.65 | 146.58 | -16.17 | 126.94 | 0.3482 | 624.0 | 523.0 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -5.61 | 145.83 | -16.92 | 125.59 | 0.3578 | 773.0 | 508.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
