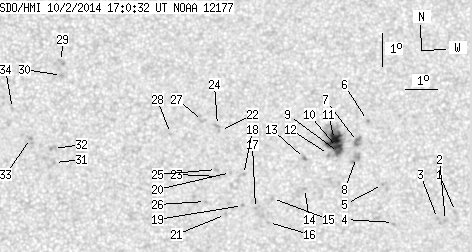

SDO HMI 2014-10-02 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.28 | 98.45 | 10.73 | 49.48 | 12.79 | 169.18 | 6.98 | 315.26 | 0.1690 | -162.4 | -138.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-02 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.58 | 0.00 | 0.80 | 10.84 | 174.35 | 12.15 | 290.12 | 0.2212 | -671.0 | -514.1 | |
| 0.00 | 1.85 | 0.00 | 0.94 | 10.58 | 174.03 | 11.83 | 289.41 | 0.2147 | -827.0 | -577.6 | |
| 0.00 | 1.50 | 0.00 | 0.76 | 10.65 | 173.78 | 11.58 | 290.06 | 0.2111 | -883.0 | -673.6 | |
| 0.00 | 0.53 | 0.00 | 0.27 | 10.56 | 172.41 | 10.21 | 291.88 | 0.1887 | -598.0 | -744.2 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 11.71 | 172.11 | 9.91 | 298.07 | 0.1920 | -919.0 | -704.9 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 13.65 | 171.72 | 9.52 | 307.51 | 0.2036 | -754.0 | -708.8 | |
| 0.00 | 6.25 | 0.00 | 3.15 | 13.02 | 171.39 | 9.19 | 305.86 | 0.1928 | -968.0 | -841.5 | |
| 0.00 | 7.65 | 0.00 | 3.86 | 12.54 | 171.34 | 9.14 | 303.87 | 0.1876 | -850.0 | -731.2 | |
| 2.11 | 40.91 | 1.06 | 20.61 | 12.70 | 170.78 | 8.58 | 306.23 | 0.1813 | -1028.6 | -593.5 | |
| 5.01 | -9.00 | 2.53 | -9.00 | 12.85 | 170.76 | 8.56 | 307.00 | 0.1825 | -1203.4 | 999999 | |
| 14.16 | -9.00 | 7.14 | -9.00 | 13.09 | 170.67 | 8.47 | 308.34 | 0.1838 | -1215.6 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.62 | 12.64 | 170.47 | 8.27 | 306.97 | 0.1765 | -870.0 | -793.4 | |
| 0.00 | 2.11 | 0.00 | 1.06 | 12.53 | 169.72 | 7.52 | 309.02 | 0.1652 | -1095.0 | -878.0 | |
| 0.00 | 1.32 | 0.00 | 0.66 | 11.63 | 169.70 | 7.50 | 304.51 | 0.1558 | -1008.0 | -738.9 | |
| 0.00 | 1.67 | 0.00 | 0.84 | 11.34 | 168.70 | 6.50 | 306.67 | 0.1390 | 774.0 | 576.1 | |
| 0.00 | 0.70 | 0.00 | 0.35 | 10.62 | 168.56 | 6.36 | 302.77 | 0.1301 | 881.0 | 595.9 | |
| 0.00 | 0.62 | 0.00 | 0.31 | 11.05 | 168.17 | 5.97 | 307.17 | 0.1287 | 953.0 | 717.4 | |
| 0.00 | 1.23 | 0.00 | 0.62 | 12.08 | 167.83 | 5.63 | 314.81 | 0.1357 | -624.0 | -475.4 | |
| 0.00 | 1.14 | 0.00 | 0.57 | 11.15 | 167.78 | 5.58 | 309.66 | 0.1244 | 970.0 | 714.2 | |
| 0.00 | 1.14 | 0.00 | 0.57 | 12.14 | 167.43 | 5.23 | 317.23 | 0.1318 | 643.0 | 480.8 | |
| 0.00 | 1.41 | 0.00 | 0.70 | 10.88 | 167.25 | 5.05 | 310.69 | 0.1145 | 875.0 | 664.6 | |
| 0.00 | 0.70 | 0.00 | 0.35 | 13.41 | 167.15 | 4.95 | 324.66 | 0.1457 | 459.0 | 512.2 | |
| 0.00 | 1.41 | 0.00 | 0.70 | 12.03 | 167.09 | 4.89 | 318.51 | 0.1263 | 823.0 | 652.2 | |
| 0.00 | 2.02 | 0.00 | 1.01 | 13.57 | 167.06 | 4.86 | 325.76 | 0.1469 | 862.0 | 727.4 | |
| 0.00 | 2.02 | 0.00 | 1.01 | 12.24 | 167.00 | 4.80 | 320.13 | 0.1281 | 985.0 | 796.4 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 11.28 | 166.64 | 4.44 | 316.88 | 0.1116 | 850.0 | 720.0 | |
| 0.00 | 2.82 | 0.00 | 1.41 | 13.72 | 166.59 | 4.39 | 328.92 | 0.1449 | 905.0 | 673.6 | |
| 0.00 | 0.88 | 0.00 | 0.44 | 13.34 | 165.60 | 3.40 | 333.70 | 0.1308 | 871.0 | 716.0 | |
| 0.00 | 3.26 | 0.00 | 1.63 | 15.53 | 162.24 | 0.04 | 359.74 | 0.1552 | 706.0 | 710.6 | |
| 0.00 | 2.20 | 0.00 | 1.10 | 15.11 | 162.24 | 0.04 | 359.73 | 0.1478 | 958.0 | 678.6 | |
| 0.00 | 1.23 | 0.00 | 0.61 | 12.48 | 162.02 | -0.18 | 1.71 | 0.1021 | 895.0 | 667.9 | |
| 0.00 | 3.26 | 0.00 | 1.62 | 12.90 | 161.99 | -0.21 | 1.87 | 0.1095 | 648.0 | 748.6 | |
| 0.00 | 1.58 | 0.00 | 0.79 | 13.20 | 161.28 | -0.92 | 7.77 | 0.1158 | 1170.0 | 930.8 | |
| 0.00 | 1.14 | 0.00 | 0.57 | 14.11 | 160.72 | -1.48 | 10.88 | 0.1329 | 875.0 | 739.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
