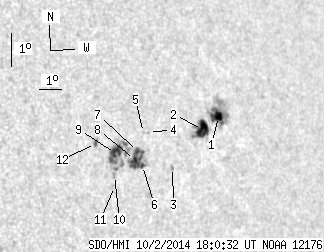

SDO HMI 2014-10-02 18:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.36 | 133.63 | 28.50 | 99.23 | 7.05 | 210.10 | 48.45 | 273.51 | 0.7460 | -119.3 | 88.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-02 18:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.16 | 38.88 | 4.79 | 30.28 | 7.51 | 212.51 | 50.86 | 274.27 | 0.7734 | -832.3 | -272.5 | |
| 14.25 | 23.75 | 10.91 | 18.15 | 7.19 | 211.70 | 50.05 | 273.81 | 0.7646 | -849.1 | -564.5 | |
| 0.00 | 1.41 | 0.00 | 1.05 | 6.18 | 210.16 | 48.51 | 272.36 | 0.7477 | -358.0 | -426.1 | |
| 0.00 | 0.79 | 0.00 | 0.58 | 7.32 | 209.22 | 47.58 | 273.83 | 0.7361 | 422.0 | 361.2 | |
| 0.00 | 1.23 | 0.00 | 0.89 | 7.34 | 209.00 | 47.35 | 273.85 | 0.7335 | 199.0 | 228.1 | |
| 1.23 | 26.13 | 0.89 | 18.86 | 6.36 | 208.83 | 47.18 | 272.50 | 0.7320 | 516.6 | 392.9 | |
| 2.46 | -6.00 | 1.78 | -6.00 | 6.79 | 208.66 | 47.01 | 273.08 | 0.7297 | -227.1 | 999999 | |
| 2.29 | -6.00 | 1.65 | -6.00 | 6.57 | 208.50 | 46.85 | 272.76 | 0.7279 | 696.3 | 999999 | |
| 11.00 | 35.45 | 7.80 | 25.21 | 6.81 | 207.69 | 46.04 | 273.05 | 0.7181 | 810.8 | 575.8 | |
| 0.00 | 2.29 | 0.00 | 1.62 | 6.16 | 207.57 | 45.92 | 272.13 | 0.7171 | 529.0 | 428.5 | |
| 0.00 | 0.62 | 0.00 | 0.44 | 5.83 | 207.53 | 45.89 | 271.67 | 0.7169 | 503.0 | 377.0 | |
| 0.97 | 3.08 | 0.68 | 2.15 | 7.18 | 206.87 | 45.22 | 273.52 | 0.7079 | 634.0 | 491.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
