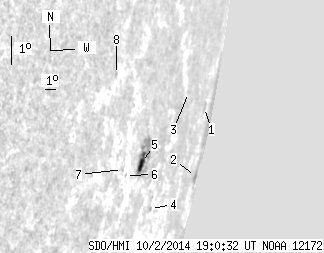

SDO HMI 2014-10-02 19:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.80 | 50.04 | 25.85 | 174.61 | -11.51 | 241.05 | 79.96 | 257.22 | 0.9855 | -43.3 | 139.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-02 19:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.81 | 0.00 | 14.54 | -10.13 | 244.11 | 83.01 | 259.07 | 0.9956 | 187.0 | 105.8 | |
| 1.41 | 9.41 | 11.23 | 83.50 | -12.50 | 246.02 | 84.93 | 256.98 | 0.9984 | 203.1 | 274.2 | |
| 0.00 | 1.23 | 0.00 | 3.56 | -9.18 | 239.89 | 78.79 | 259.43 | 0.9858 | 83.0 | 60.8 | |
| 0.00 | 1.23 | 0.00 | 2.96 | -12.47 | 237.29 | 76.19 | 255.71 | 0.9794 | -209.0 | -145.6 | |
| 7.39 | 33.08 | 14.62 | 66.29 | -10.77 | 234.87 | 73.78 | 257.03 | 0.9691 | -201.2 | 13.0 | |
| 0.00 | 0.26 | 0.00 | 0.48 | -10.99 | 233.32 | 72.22 | 256.52 | 0.9625 | -204.0 | -185.0 | |
| 0.00 | 0.88 | 0.00 | 1.54 | -10.76 | 232.87 | 71.78 | 256.68 | 0.9602 | -415.0 | -425.4 | |
| 0.00 | 1.14 | 0.00 | 1.74 | -7.60 | 230.83 | 69.74 | 259.58 | 0.9469 | -159.0 | -200.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
