SDO HMI 2014-10-02 19:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.76 | 38.28 | 0.92 | 20.35 | -13.80 | 160.72 | -0.38 | 179.88 | 0.3591 | 236.7 | 39.7 | |
|
previous
or next observation for the same group /

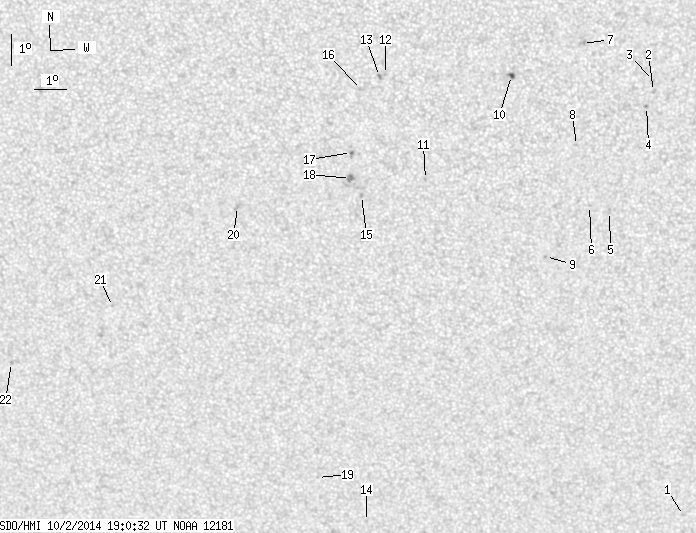

back to the solar disc SDO HMI 2014-10-02 19:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.52 | -25.03 | 169.16 | 8.06 | 193.63 | 0.5414 | 672.0 | 531.1 | |
| 0.00 | 2.29 | 0.00 | 1.20 | -10.97 | 167.62 | 6.53 | 200.28 | 0.3233 | 692.0 | 628.3 | |
| 0.00 | 0.79 | 0.00 | 0.41 | -10.63 | 167.62 | 6.52 | 200.65 | 0.3179 | 901.0 | 739.0 | |
| 0.00 | 1.23 | 0.00 | 0.65 | -11.44 | 167.42 | 6.32 | 199.21 | 0.3295 | 1038.0 | 814.8 | |
| 0.00 | 1.94 | 0.00 | 1.03 | -14.77 | 166.35 | 5.25 | 193.64 | 0.3770 | 460.0 | 410.8 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -14.57 | 165.72 | 4.62 | 192.18 | 0.3715 | 645.0 | 583.7 | |
| 0.00 | 2.64 | 0.00 | 1.36 | -9.44 | 165.42 | 4.33 | 195.06 | 0.2879 | 885.0 | 787.4 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -12.65 | 165.28 | 4.19 | 192.18 | 0.3393 | 653.0 | 430.6 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -16.21 | 164.38 | 3.28 | 188.06 | 0.3938 | 788.0 | 631.8 | |
| 1.41 | 3.34 | 0.73 | 1.73 | -10.42 | 163.27 | 2.17 | 187.24 | 0.2972 | -1077.8 | -814.2 | |
| 0.00 | 1.23 | 0.00 | 0.65 | -13.71 | 160.64 | -0.46 | 178.72 | 0.3495 | 944.0 | 641.7 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -10.38 | 159.43 | -1.67 | 174.41 | 0.2956 | 831.0 | 719.7 | |
| 0.00 | 1.94 | 0.00 | 1.00 | -10.45 | 159.24 | -1.85 | 173.83 | 0.2969 | 983.0 | 775.5 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -25.17 | 158.63 | -2.46 | 175.78 | 0.5306 | 526.0 | 453.0 | |
| 0.00 | 1.94 | 0.00 | 1.03 | -14.23 | 158.65 | -2.44 | 173.39 | 0.3602 | -829.0 | -701.6 | |
| 0.00 | 2.55 | 0.00 | 1.33 | -10.86 | 158.69 | -2.41 | 172.19 | 0.3049 | 949.0 | 634.0 | |
| 0.35 | 2.38 | 0.19 | 1.25 | -12.85 | 158.36 | -2.73 | 172.07 | 0.3384 | -1090.8 | -887.1 | |
| 0.00 | 4.13 | 0.00 | 2.19 | -13.68 | 158.32 | -2.78 | 172.29 | 0.3520 | -1187.0 | -956.9 | |
| 0.00 | 1.14 | 0.00 | 0.66 | -23.63 | 157.06 | -4.04 | 172.70 | 0.5101 | 718.0 | 469.8 | |
| 0.00 | 2.90 | 0.00 | 1.55 | -14.61 | 154.79 | -6.30 | 163.64 | 0.3788 | -826.0 | -658.1 | |
| 0.00 | 1.06 | 0.00 | 0.58 | -17.94 | 150.70 | -10.40 | 157.48 | 0.4503 | -798.0 | -599.5 | |
| 0.00 | 1.23 | 0.00 | 0.70 | -19.88 | 147.27 | -13.82 | 153.14 | 0.4992 | -771.0 | -569.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
