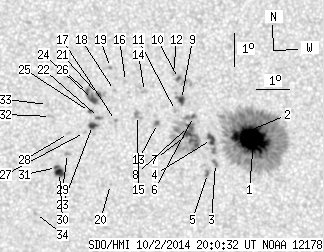

SDO HMI 2014-10-02 20:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 91.57 | 496.20 | 46.24 | 250.34 | -1.49 | 153.44 | -7.10 | 139.24 | 0.1894 | 596.3 | 387.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-02 20:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52.69 | 340.70 | 26.53 | 171.53 | -1.64 | 154.52 | -6.02 | 143.86 | 0.1786 | 1564.2 | 468.8 | |
| 5.98 | -1.00 | 3.01 | -1.00 | -1.56 | 153.98 | -6.56 | 141.18 | 0.1831 | 1195.6 | 999999 | |
| 0.00 | 2.81 | 0.00 | 1.42 | -2.39 | 153.37 | -7.17 | 141.37 | 0.2008 | 997.0 | 830.7 | |
| 4.13 | -1.00 | 2.09 | -1.00 | -1.66 | 153.25 | -7.29 | 138.54 | 0.1924 | 1151.1 | 999999 | |
| 0.70 | 2.64 | 0.36 | 1.34 | -2.69 | 153.13 | -7.42 | 141.37 | 0.2075 | 860.1 | 712.7 | |
| 0.79 | 67.82 | 0.40 | 34.29 | -0.97 | 152.71 | -7.83 | 133.99 | 0.1902 | 1118.8 | 478.3 | |
| 3.52 | -6.00 | 1.78 | -6.00 | -1.49 | 152.56 | -7.98 | 135.32 | 0.1984 | 1019.6 | 999999 | |
| 1.06 | -6.00 | 0.53 | -6.00 | -1.28 | 152.56 | -7.98 | 134.56 | 0.1958 | 901.3 | 999999 | |
| 3.08 | 6.33 | 1.55 | 3.19 | -0.46 | 152.35 | -8.19 | 130.71 | 0.1889 | 1172.7 | 758.4 | |
| 0.70 | 8.27 | 0.35 | 4.16 | 0.17 | 152.26 | -8.28 | 127.77 | 0.1831 | 1154.8 | 886.4 | |
| 0.00 | 2.81 | 0.00 | 1.42 | -0.80 | 152.17 | -8.38 | 131.39 | 0.1950 | 594.0 | 518.5 | |
| 0.00 | 1.76 | 0.00 | 0.89 | 0.32 | 152.11 | -8.43 | 126.62 | 0.1836 | 802.0 | 551.5 | |
| 0.62 | 2.90 | 0.31 | 1.47 | -1.20 | 151.62 | -8.92 | 131.07 | 0.2066 | 1018.6 | 737.3 | |
| 0.00 | 2.64 | 0.00 | 1.33 | -0.24 | 151.23 | -9.32 | 126.18 | 0.2015 | 809.0 | 657.3 | |
| 0.00 | 5.28 | 0.00 | 2.67 | -0.97 | 151.01 | -9.53 | 128.35 | 0.2120 | 694.0 | 619.6 | |
| 0.00 | 1.14 | 0.00 | 0.58 | 0.05 | 150.65 | -9.89 | 123.37 | 0.2067 | -709.0 | -528.1 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -1.13 | 150.34 | -10.20 | 127.03 | 0.2228 | -887.0 | -714.3 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -0.23 | 150.31 | -10.23 | 123.57 | 0.2141 | -844.0 | -609.0 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 0.47 | 150.19 | -10.35 | 120.50 | 0.2094 | -1052.0 | -902.4 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -3.08 | 150.17 | -10.37 | 132.91 | 0.2465 | -920.0 | -661.9 | |
| 1.58 | 17.42 | 0.80 | 8.85 | -0.36 | 149.83 | -10.72 | 122.82 | 0.2223 | -1251.6 | -882.5 | |
| 0.62 | 2.81 | 0.31 | 1.43 | -1.05 | 149.82 | -10.72 | 125.36 | 0.2291 | -1180.1 | -942.3 | |
| 3.17 | 5.01 | 1.61 | 2.55 | -1.30 | 149.64 | -10.90 | 125.75 | 0.2341 | -1132.8 | -859.0 | |
| 4.22 | -21.00 | 2.15 | -21.00 | -0.51 | 149.64 | -10.90 | 122.95 | 0.2264 | -1078.3 | 999999 | |
| 0.70 | 2.20 | 0.36 | 1.12 | -0.88 | 149.55 | -10.99 | 124.05 | 0.2312 | -987.5 | -790.2 | |
| 1.50 | -21.00 | 0.76 | -21.00 | -0.30 | 149.49 | -11.05 | 121.81 | 0.2266 | -956.5 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -1.51 | 149.39 | -11.15 | 125.88 | 0.2396 | -832.0 | -654.2 | |
| 0.00 | 1.58 | 0.00 | 0.81 | -1.56 | 148.90 | -11.64 | 124.83 | 0.2468 | -851.0 | -650.4 | |
| 0.00 | 2.64 | 0.00 | 1.35 | -2.16 | 148.87 | -11.67 | 126.71 | 0.2534 | -1101.0 | -843.8 | |
| 4.84 | 9.06 | 2.48 | 4.65 | -2.75 | 148.62 | -11.93 | 127.91 | 0.2628 | -1100.9 | -834.3 | |
| 1.67 | -30.00 | 0.86 | -30.00 | -2.60 | 148.53 | -12.02 | 127.25 | 0.2624 | -1070.9 | 999999 | |
| 0.00 | 1.94 | 0.00 | 0.99 | -1.05 | 148.35 | -12.19 | 121.91 | 0.2498 | -759.0 | -649.9 | |
| 0.00 | 1.58 | 0.00 | 0.81 | -0.69 | 148.26 | -12.28 | 120.48 | 0.2479 | -934.0 | -664.2 | |
| 0.00 | 1.41 | 0.00 | 0.73 | -4.01 | 147.86 | -12.68 | 129.76 | 0.2862 | 850.0 | 628.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
