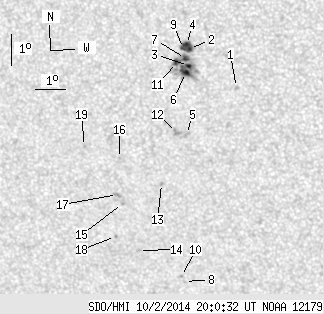

SDO HMI 2014-10-02 20:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.61 | 78.99 | 10.79 | 43.86 | -10.56 | 140.05 | -20.49 | 129.89 | 0.4511 | 475.5 | 427.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-02 20:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.94 | 0.00 | 1.06 | -10.40 | 141.99 | -18.55 | 132.56 | 0.4266 | 697.0 | 588.9 | |
| 2.81 | 58.06 | 1.54 | 31.97 | -9.24 | 140.55 | -19.99 | 128.34 | 0.4321 | 1167.9 | 610.2 | |
| 1.58 | -2.00 | 0.87 | -2.00 | -9.77 | 140.48 | -20.06 | 129.21 | 0.4381 | 1181.2 | 999999 | |
| 3.61 | -2.00 | 1.98 | -2.00 | -9.12 | 140.46 | -20.08 | 127.99 | 0.4320 | 1073.9 | 999999 | |
| 0.00 | 2.46 | 0.00 | 1.37 | -11.95 | 140.26 | -20.28 | 132.61 | 0.4627 | 757.0 | 664.8 | |
| 4.84 | -2.00 | 2.67 | -2.00 | -10.00 | 140.37 | -20.17 | 129.45 | 0.4416 | 952.1 | 999999 | |
| 2.55 | -2.00 | 1.40 | -2.00 | -9.56 | 140.40 | -20.14 | 128.71 | 0.4370 | 1223.4 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -16.69 | 139.73 | -20.81 | 138.82 | 0.5189 | 462.0 | 408.1 | |
| 1.67 | -2.00 | 0.92 | -2.00 | -9.25 | 140.35 | -20.19 | 128.08 | 0.4345 | 939.7 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.61 | -16.53 | 139.65 | -20.89 | 138.49 | 0.5179 | 778.0 | 587.3 | |
| 2.55 | -2.00 | 1.41 | -2.00 | -9.70 | 140.10 | -20.44 | 128.54 | 0.4420 | 789.7 | 999999 | |
| 0.00 | 4.57 | 0.00 | 2.56 | -11.90 | 139.94 | -20.61 | 132.08 | 0.4659 | 910.0 | 759.2 | |
| 0.00 | 1.14 | 0.00 | 0.65 | -13.55 | 139.30 | -21.24 | 133.78 | 0.4899 | 773.0 | 669.5 | |
| 0.00 | 1.41 | 0.00 | 0.82 | -15.75 | 138.30 | -22.25 | 135.65 | 0.5233 | -699.0 | -527.0 | |
| 0.00 | 1.14 | 0.00 | 0.66 | -14.25 | 137.93 | -22.62 | 133.04 | 0.5120 | -778.0 | -691.4 | |
| 0.00 | 0.97 | 0.00 | 0.55 | -12.81 | 137.97 | -22.57 | 130.93 | 0.4973 | -901.0 | -743.3 | |
| 0.00 | 2.99 | 0.00 | 1.72 | -13.97 | 137.79 | -22.75 | 132.45 | 0.5107 | -869.0 | -704.5 | |
| 0.00 | 1.23 | 0.00 | 0.72 | -15.33 | 137.57 | -22.97 | 134.14 | 0.5267 | -744.0 | -548.1 | |
| 0.00 | 1.14 | 0.00 | 0.66 | -12.48 | 136.83 | -23.71 | 129.03 | 0.5074 | -735.0 | -559.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
