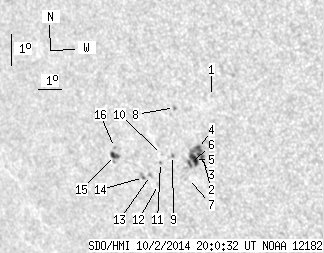

SDO HMI 2014-10-02 20:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.51 | 39.76 | 10.36 | 28.52 | -13.25 | 118.46 | -42.08 | 115.53 | 0.7250 | 312.3 | 183.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-02 20:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.26 | 0.00 | 0.18 | -11.13 | 120.59 | -39.96 | 113.87 | 0.6914 | 588.0 | 550.3 | |
| 0.88 | 20.67 | 0.62 | 14.54 | -13.08 | 119.86 | -40.68 | 116.04 | 0.7090 | 770.3 | 549.7 | |
| 0.70 | -2.00 | 0.49 | -2.00 | -13.03 | 119.71 | -40.83 | 115.89 | 0.7104 | 930.9 | 999999 | |
| 2.55 | -2.00 | 1.79 | -2.00 | -12.83 | 119.75 | -40.79 | 115.66 | 0.7091 | 918.9 | 999999 | |
| 5.54 | -2.00 | 3.91 | -2.00 | -13.20 | 119.51 | -41.03 | 116.01 | 0.7135 | 670.3 | 999999 | |
| 1.32 | -2.00 | 0.93 | -2.00 | -13.34 | 119.32 | -41.23 | 116.09 | 0.7163 | 367.5 | 999999 | |
| 0.00 | 0.35 | 0.00 | 0.25 | -13.83 | 119.13 | -41.41 | 116.61 | 0.7207 | 12.0 | 20.8 | |
| 0.00 | 1.41 | 0.00 | 0.99 | -11.60 | 119.00 | -41.54 | 113.66 | 0.7115 | 774.0 | 709.6 | |
| 0.00 | 1.58 | 0.00 | 1.13 | -13.14 | 118.61 | -41.93 | 115.46 | 0.7230 | 619.0 | 524.3 | |
| 0.00 | 0.62 | 0.00 | 0.44 | -13.15 | 118.16 | -42.39 | 115.22 | 0.7280 | 631.0 | 528.9 | |
| 0.00 | 0.88 | 0.00 | 0.64 | -13.41 | 118.06 | -42.49 | 115.50 | 0.7303 | 287.0 | 263.5 | |
| 0.00 | 2.02 | 0.00 | 1.48 | -14.13 | 117.81 | -42.74 | 116.28 | 0.7363 | -374.0 | -335.4 | |
| 0.00 | 1.85 | 0.00 | 1.35 | -13.87 | 117.53 | -43.01 | 115.81 | 0.7380 | 204.0 | 170.1 | |
| 0.44 | 3.17 | 0.32 | 2.33 | -13.96 | 117.21 | -43.33 | 115.75 | 0.7417 | -395.8 | -262.7 | |
| 3.08 | 6.16 | 2.30 | 4.60 | -13.35 | 116.11 | -44.43 | 114.45 | 0.7506 | -640.9 | -499.4 | |
| 0.00 | 0.79 | 0.00 | 0.59 | -13.09 | 116.17 | -44.37 | 114.16 | 0.7489 | -547.0 | -453.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
