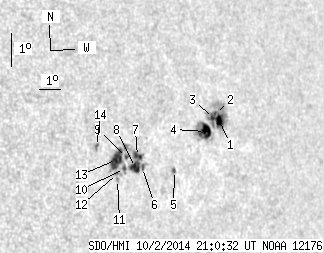

SDO HMI 2014-10-02 21:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.14 | 117.44 | 34.51 | 90.53 | 7.04 | 210.32 | 50.33 | 273.61 | 0.7672 | 32.1 | -63.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-02 21:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.37 | 38.97 | 4.34 | 31.50 | 7.47 | 212.67 | 52.68 | 274.32 | 0.7930 | -677.0 | -309.7 | |
| 1.23 | -1.00 | 0.99 | -1.00 | 7.70 | 212.51 | 52.52 | 274.59 | 0.7912 | -709.5 | 999999 | |
| 1.85 | -1.00 | 1.49 | -1.00 | 7.56 | 212.38 | 52.39 | 274.41 | 0.7899 | -765.5 | 999999 | |
| 10.82 | 20.50 | 8.62 | 16.28 | 7.20 | 211.93 | 51.94 | 273.94 | 0.7852 | -839.6 | -600.3 | |
| 0.62 | 1.58 | 0.47 | 1.22 | 6.18 | 210.27 | 50.28 | 272.49 | 0.7678 | -552.7 | -567.7 | |
| 0.88 | 20.67 | 0.66 | 15.39 | 6.40 | 208.81 | 48.82 | 272.67 | 0.7510 | 311.5 | 253.5 | |
| 3.08 | -6.00 | 2.29 | -6.00 | 6.75 | 208.62 | 48.63 | 273.12 | 0.7487 | 7.1 | 999999 | |
| 7.21 | -6.00 | 5.36 | -6.00 | 6.43 | 208.49 | 48.50 | 272.69 | 0.7474 | 679.5 | 999999 | |
| 0.62 | 2.20 | 0.45 | 1.62 | 6.76 | 208.12 | 48.13 | 273.11 | 0.7429 | 491.9 | 459.9 | |
| 0.97 | 26.57 | 0.71 | 19.47 | 6.44 | 207.99 | 48.00 | 272.67 | 0.7416 | 641.3 | 455.7 | |
| 0.00 | 1.76 | 0.00 | 1.29 | 6.14 | 207.64 | 47.65 | 272.23 | 0.7376 | 442.0 | 416.5 | |
| 0.00 | 2.46 | 0.00 | 1.80 | 6.32 | 207.66 | 47.67 | 272.48 | 0.7378 | 703.0 | 554.7 | |
| 12.49 | -10.00 | 9.13 | -10.00 | 6.74 | 207.67 | 47.68 | 273.05 | 0.7376 | 815.3 | 999999 | |
| 0.00 | 2.73 | 0.00 | 1.96 | 7.20 | 206.83 | 46.84 | 273.63 | 0.7275 | 477.0 | 439.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
