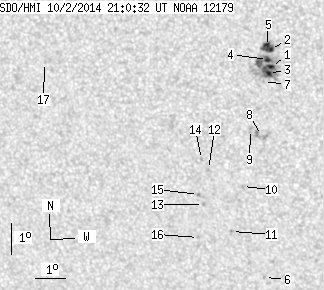

SDO HMI 2014-10-02 21:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.52 | 85.60 | 7.96 | 47.31 | -10.33 | 140.06 | -19.93 | 130.31 | 0.4422 | 302.6 | 447.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-02 21:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.02 | 64.13 | 1.11 | 35.19 | -9.78 | 140.51 | -19.48 | 130.06 | 0.4312 | 1105.0 | 587.2 | |
| 3.08 | -1.00 | 1.68 | -1.00 | -9.25 | 140.51 | -19.48 | 129.10 | 0.4259 | 1177.8 | 999999 | |
| 2.38 | -1.00 | 1.31 | -1.00 | -10.01 | 140.40 | -19.59 | 130.30 | 0.4347 | 989.1 | 999999 | |
| 2.64 | -1.00 | 1.45 | -1.00 | -9.57 | 140.40 | -19.59 | 129.51 | 0.4304 | 1213.8 | 999999 | |
| 4.40 | -1.00 | 2.41 | -1.00 | -9.16 | 140.39 | -19.60 | 128.76 | 0.4265 | 944.8 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.66 | -16.54 | 139.70 | -20.29 | 139.33 | 0.5121 | 719.0 | 577.8 | |
| 0.00 | 1.06 | 0.00 | 0.58 | -10.26 | 140.22 | -19.77 | 130.50 | 0.4395 | 228.0 | 228.0 | |
| 0.00 | 7.21 | 0.00 | 4.02 | -11.97 | 140.03 | -19.96 | 133.10 | 0.4592 | 694.0 | 720.5 | |
| 0.00 | 2.64 | 0.00 | 1.47 | -11.79 | 139.69 | -20.30 | 132.33 | 0.4613 | 708.0 | 497.1 | |
| 0.00 | 1.50 | 0.00 | 0.85 | -13.62 | 139.27 | -20.72 | 134.61 | 0.4850 | 768.0 | 532.8 | |
| 0.00 | 0.97 | 0.00 | 0.55 | -15.09 | 138.76 | -21.23 | 136.05 | 0.5059 | -899.0 | -687.3 | |
| 0.00 | 1.58 | 0.00 | 0.90 | -13.13 | 138.19 | -21.80 | 132.40 | 0.4918 | -767.0 | -544.4 | |
| 0.00 | 0.97 | 0.00 | 0.56 | -14.26 | 137.91 | -22.08 | 133.74 | 0.5063 | -804.0 | -697.6 | |
| 0.00 | 1.23 | 0.00 | 0.70 | -12.82 | 137.99 | -22.00 | 131.66 | 0.4910 | -936.0 | -779.5 | |
| 0.00 | 1.41 | 0.00 | 0.81 | -13.94 | 137.77 | -22.22 | 133.10 | 0.5046 | -831.0 | -758.7 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -15.33 | 137.62 | -22.37 | 134.91 | 0.5203 | -712.0 | -601.7 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -10.01 | 132.96 | -27.03 | 121.49 | 0.5269 | -667.0 | -467.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
