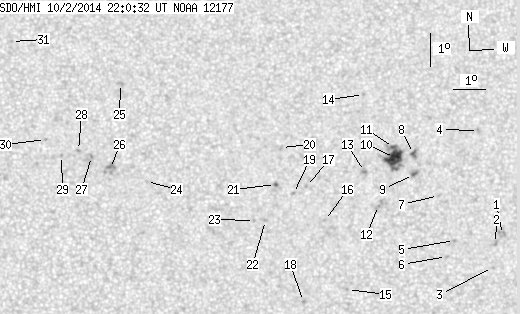

SDO HMI 2014-10-02 22:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.66 | 96.10 | 9.48 | 48.62 | 12.54 | 168.92 | 9.48 | 306.79 | 0.2001 | -198.5 | -200.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-02 22:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.31 | 0.00 | 2.21 | 10.60 | 174.03 | 14.59 | 286.34 | 0.2592 | -717.0 | -759.4 | |
| 0.00 | 2.29 | 0.00 | 1.17 | 10.34 | 173.80 | 14.36 | 285.56 | 0.2544 | -926.0 | -752.9 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 9.62 | 173.67 | 14.23 | 282.87 | 0.2497 | -781.0 | -602.2 | |
| 0.00 | 1.94 | 0.00 | 0.99 | 13.76 | 173.45 | 14.01 | 298.39 | 0.2685 | -745.0 | -603.3 | |
| 0.00 | 1.41 | 0.00 | 0.72 | 10.46 | 172.51 | 13.08 | 287.35 | 0.2342 | -894.0 | -688.6 | |
| 0.00 | 1.14 | 0.00 | 0.58 | 9.99 | 172.24 | 12.81 | 285.65 | 0.2277 | -814.0 | -649.2 | |
| 0.00 | 1.41 | 0.00 | 0.72 | 11.83 | 172.08 | 12.64 | 293.49 | 0.2346 | -875.0 | -722.3 | |
| 0.97 | 3.96 | 0.49 | 2.02 | 13.12 | 171.35 | 11.92 | 299.78 | 0.2327 | -1055.7 | -902.9 | |
| 0.62 | 3.26 | 0.31 | 1.66 | 12.48 | 171.32 | 11.88 | 297.37 | 0.2274 | -983.7 | -749.1 | |
| 15.66 | 35.46 | 7.96 | 18.01 | 13.01 | 170.75 | 11.31 | 300.59 | 0.2231 | -1183.0 | -764.4 | |
| 1.06 | -10.00 | 0.54 | -10.00 | 13.31 | 170.73 | 11.30 | 301.81 | 0.2253 | -928.2 | 999999 | |
| 0.00 | 4.84 | 0.00 | 2.45 | 11.58 | 170.19 | 10.75 | 295.68 | 0.2037 | -848.0 | -740.3 | |
| 0.00 | 3.43 | 0.00 | 1.74 | 12.61 | 169.79 | 10.36 | 301.06 | 0.2057 | -937.0 | -833.7 | |
| 0.00 | 0.88 | 0.00 | 0.45 | 14.94 | 169.87 | 10.43 | 309.84 | 0.2289 | -851.0 | -687.2 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 9.07 | 169.14 | 9.70 | 284.78 | 0.1729 | 795.0 | 641.0 | |
| 0.00 | 1.14 | 0.00 | 0.58 | 11.16 | 168.50 | 9.06 | 297.40 | 0.1748 | 989.0 | 771.2 | |
| 0.00 | 1.23 | 0.00 | 0.62 | 12.19 | 167.97 | 8.53 | 304.00 | 0.1758 | -691.0 | -439.3 | |
| 0.00 | 1.58 | 0.00 | 0.79 | 8.74 | 167.78 | 8.34 | 284.72 | 0.1490 | 916.0 | 753.8 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 11.99 | 167.56 | 8.13 | 304.27 | 0.1681 | 714.0 | 589.5 | |
| 0.00 | 1.85 | 0.00 | 0.93 | 13.38 | 167.24 | 7.80 | 311.86 | 0.1781 | 720.0 | 627.2 | |
| 0.35 | 1.23 | 0.18 | 0.62 | 12.27 | 167.01 | 7.58 | 307.52 | 0.1632 | 1037.8 | 894.0 | |
| 0.00 | 1.50 | 0.00 | 0.75 | 11.19 | 166.68 | 7.24 | 302.95 | 0.1479 | 943.0 | 673.1 | |
| 0.00 | 0.97 | 0.00 | 0.48 | 11.20 | 166.34 | 6.90 | 304.21 | 0.1431 | 800.0 | 457.5 | |
| 0.00 | 0.88 | 0.00 | 0.44 | 12.41 | 163.04 | 3.60 | 328.62 | 0.1183 | 768.0 | 531.4 | |
| 0.00 | 2.82 | 0.00 | 1.41 | 15.38 | 162.28 | 2.84 | 342.53 | 0.1600 | 854.0 | 709.3 | |
| 0.00 | 9.50 | 0.00 | 4.74 | 12.81 | 161.94 | 2.50 | 338.41 | 0.1160 | 951.0 | 790.6 | |
| 0.00 | 1.67 | 0.00 | 0.83 | 13.17 | 161.35 | 1.92 | 344.02 | 0.1188 | 1020.0 | 830.6 | |
| 0.00 | 1.41 | 0.00 | 0.70 | 13.36 | 160.96 | 1.52 | 347.56 | 0.1202 | 999.0 | 762.7 | |
| 0.00 | 1.14 | 0.00 | 0.57 | 13.21 | 160.43 | 0.99 | 351.60 | 0.1160 | 863.0 | 679.5 | |
| 0.00 | 0.79 | 0.00 | 0.40 | 13.69 | 159.94 | 0.50 | 356.03 | 0.1235 | 840.0 | 648.9 | |
| 0.00 | 0.88 | 0.00 | 0.44 | 16.66 | 158.89 | -0.55 | 3.04 | 0.1750 | 824.0 | 635.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
