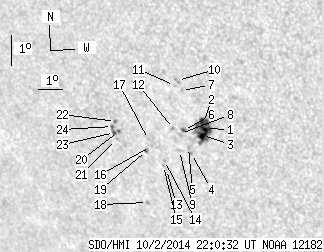

SDO HMI 2014-10-02 22:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.86 | 60.62 | 14.50 | 42.55 | -13.20 | 118.73 | -40.70 | 116.20 | 0.7097 | 197.4 | 66.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-02 22:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.63 | 31.23 | 3.88 | 21.56 | -13.00 | 119.82 | -39.62 | 116.54 | 0.6968 | 936.6 | 374.4 | |
| 5.72 | -1.00 | 3.93 | -1.00 | -12.81 | 119.78 | -39.66 | 116.27 | 0.6963 | 929.9 | 999999 | |
| 5.98 | -1.00 | 4.14 | -1.00 | -13.23 | 119.65 | -39.78 | 116.75 | 0.6999 | 670.2 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.74 | -13.85 | 119.08 | -40.35 | 117.22 | 0.7093 | 291.0 | 156.8 | |
| 0.00 | 1.41 | 0.00 | 0.99 | -13.66 | 119.00 | -40.44 | 116.94 | 0.7093 | -282.0 | -229.6 | |
| 0.79 | 1.94 | 0.55 | 1.35 | -13.13 | 118.91 | -40.53 | 116.20 | 0.7076 | 360.2 | 210.5 | |
| 0.00 | 0.70 | 0.00 | 0.49 | -11.85 | 119.07 | -40.37 | 114.61 | 0.6995 | 694.0 | 596.9 | |
| 0.00 | 1.85 | 0.00 | 1.29 | -13.24 | 118.76 | -40.68 | 116.25 | 0.7098 | -175.0 | -225.6 | |
| 0.00 | 2.82 | 0.00 | 1.99 | -13.79 | 118.61 | -40.83 | 116.88 | 0.7142 | -248.0 | -177.3 | |
| 0.00 | 2.46 | 0.00 | 1.70 | -11.55 | 118.96 | -40.47 | 114.15 | 0.6993 | 547.0 | 605.9 | |
| 0.00 | 0.88 | 0.00 | 0.61 | -11.72 | 118.81 | -40.63 | 114.29 | 0.7018 | 613.0 | 534.1 | |
| 0.00 | 0.97 | 0.00 | 0.68 | -13.10 | 118.51 | -40.93 | 115.93 | 0.7119 | 214.0 | 263.6 | |
| 0.00 | 0.35 | 0.00 | 0.25 | -14.45 | 117.92 | -41.52 | 117.34 | 0.7249 | -493.0 | -468.5 | |
| 0.00 | 0.88 | 0.00 | 0.63 | -14.16 | 117.90 | -41.53 | 116.97 | 0.7236 | -546.0 | -523.4 | |
| 0.00 | 0.88 | 0.00 | 0.63 | -14.33 | 117.83 | -41.61 | 117.13 | 0.7253 | -656.0 | -580.9 | |
| 0.00 | 1.58 | 0.00 | 1.14 | -13.76 | 117.41 | -42.02 | 116.18 | 0.7269 | 454.0 | 337.9 | |
| 0.00 | 0.79 | 0.00 | 0.57 | -13.54 | 117.38 | -42.06 | 115.89 | 0.7262 | 331.0 | 305.9 | |
| 0.00 | 1.32 | 0.00 | 0.97 | -15.59 | 116.84 | -42.59 | 118.17 | 0.7418 | -519.0 | -400.9 | |
| 0.00 | 1.67 | 0.00 | 1.21 | -13.90 | 117.21 | -42.22 | 116.26 | 0.7297 | -197.0 | -328.0 | |
| 0.62 | 5.45 | 0.45 | 4.00 | -13.38 | 116.15 | -43.29 | 115.06 | 0.7387 | -573.0 | -559.1 | |
| 0.00 | 1.06 | 0.00 | 0.78 | -13.65 | 116.00 | -43.43 | 115.32 | 0.7414 | -484.0 | -416.2 | |
| 0.44 | 1.32 | 0.32 | 0.97 | -13.07 | 116.09 | -43.34 | 114.64 | 0.7379 | -559.8 | -470.5 | |
| 1.06 | -20.00 | 0.78 | -20.00 | -13.43 | 115.97 | -43.47 | 115.03 | 0.7408 | -693.2 | 999999 | |
| 0.62 | -20.00 | 0.45 | -20.00 | -13.24 | 115.93 | -43.51 | 114.77 | 0.7404 | -745.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
