SDO HMI 2014-10-02 23:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.48 | 124.41 | 29.43 | 98.50 | 7.00 | 210.44 | 51.56 | 273.64 | 0.7807 | 41.2 | -71.8 | |
|
previous
or next observation for the same group /

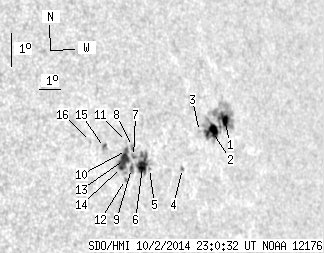

back to the solar disc SDO HMI 2014-10-02 23:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.42 | 66.34 | 5.33 | 54.70 | 7.48 | 212.69 | 53.81 | 274.40 | 0.8047 | -664.9 | -355.5 | |
| 11.44 | -1.00 | 9.35 | -1.00 | 7.18 | 212.02 | 53.14 | 273.99 | 0.7980 | -786.8 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.92 | 7.24 | 211.38 | 52.49 | 274.02 | 0.7912 | -478.0 | -398.1 | |
| 0.00 | 1.85 | 0.00 | 1.46 | 6.22 | 210.38 | 51.50 | 272.64 | 0.7811 | -577.0 | -478.2 | |
| 0.00 | 1.14 | 0.00 | 0.87 | 6.36 | 208.82 | 49.94 | 272.71 | 0.7638 | 81.0 | 138.6 | |
| 7.48 | 20.59 | 5.68 | 15.65 | 6.45 | 208.50 | 49.62 | 272.80 | 0.7601 | 628.7 | 222.0 | |
| 0.00 | 2.20 | 0.00 | 1.66 | 6.78 | 208.13 | 49.24 | 273.21 | 0.7557 | 526.0 | 466.3 | |
| 0.00 | 2.82 | 0.00 | 2.12 | 7.08 | 208.13 | 49.24 | 273.62 | 0.7555 | 427.0 | 362.0 | |
| 0.88 | 3.87 | 0.66 | 2.91 | 6.43 | 207.99 | 49.10 | 272.74 | 0.7543 | 554.7 | 516.3 | |
| 1.06 | 18.48 | 0.79 | 13.80 | 6.99 | 207.83 | 48.95 | 273.47 | 0.7522 | 670.4 | 604.7 | |
| 0.00 | 0.79 | 0.00 | 0.59 | 7.26 | 207.87 | 48.99 | 273.83 | 0.7525 | 358.0 | 362.6 | |
| 0.00 | 1.32 | 0.00 | 0.99 | 6.13 | 207.67 | 48.79 | 272.31 | 0.7509 | 356.0 | 423.3 | |
| 8.18 | -10.00 | 6.11 | -10.00 | 6.73 | 207.71 | 48.82 | 273.12 | 0.7509 | 830.1 | 999999 | |
| 2.02 | -10.00 | 1.51 | -10.00 | 6.50 | 207.54 | 48.65 | 272.80 | 0.7491 | 798.4 | 999999 | |
| 0.00 | 2.90 | 0.00 | 2.13 | 7.16 | 206.85 | 47.97 | 273.65 | 0.7408 | 668.0 | 521.2 | |
| 0.00 | 0.97 | 0.00 | 0.70 | 7.40 | 206.25 | 47.37 | 273.93 | 0.7336 | 379.0 | 407.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
