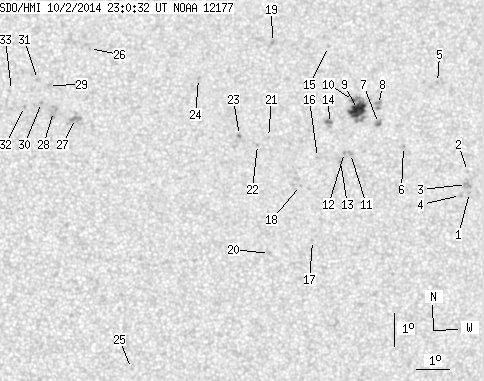

SDO HMI 2014-10-02 23:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.45 | 95.73 | 8.38 | 48.47 | 12.55 | 168.52 | 9.63 | 306.78 | 0.2026 | -263.4 | -186.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-02 23:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.50 | 10.40 | 174.13 | 15.25 | 285.04 | 0.2690 | -822.0 | -627.8 | |
| 0.00 | 0.79 | 0.00 | 0.41 | 11.03 | 174.10 | 15.22 | 287.35 | 0.2711 | -571.0 | -482.3 | |
| 0.00 | 5.54 | 0.00 | 2.85 | 10.65 | 174.05 | 15.16 | 285.99 | 0.2686 | -973.0 | -797.4 | |
| 0.00 | 1.67 | 0.00 | 0.86 | 10.32 | 173.84 | 14.96 | 284.98 | 0.2640 | -899.0 | -696.9 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 13.74 | 173.31 | 14.42 | 297.71 | 0.2745 | -831.0 | -605.1 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 11.85 | 172.12 | 13.24 | 292.67 | 0.2440 | -867.0 | -752.2 | |
| 0.00 | 3.96 | 0.00 | 2.02 | 12.56 | 171.37 | 12.49 | 296.60 | 0.2371 | -959.0 | -848.4 | |
| 0.00 | 5.10 | 0.00 | 2.60 | 13.13 | 171.40 | 12.52 | 298.71 | 0.2417 | -887.0 | -817.3 | |
| 15.57 | 30.53 | 7.93 | 15.54 | 13.00 | 170.73 | 11.85 | 299.46 | 0.2308 | -1187.7 | -803.5 | |
| 0.88 | -9.00 | 0.45 | -9.00 | 13.27 | 170.62 | 11.74 | 300.74 | 0.2314 | -1069.7 | 999999 | |
| 0.00 | 2.02 | 0.00 | 1.03 | 11.68 | 170.45 | 11.57 | 294.62 | 0.2170 | -740.0 | -668.5 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 11.71 | 170.27 | 11.38 | 295.10 | 0.2143 | -811.0 | -645.3 | |
| 0.00 | 1.14 | 0.00 | 0.58 | 11.44 | 170.13 | 11.24 | 294.17 | 0.2104 | -987.0 | -838.2 | |
| 0.00 | 5.10 | 0.00 | 2.59 | 12.60 | 169.84 | 10.95 | 299.69 | 0.2144 | -854.0 | -814.5 | |
| 0.00 | 1.14 | 0.00 | 0.58 | 14.92 | 169.92 | 11.03 | 308.29 | 0.2367 | -864.0 | -677.8 | |
| 0.00 | 1.50 | 0.00 | 0.76 | 11.58 | 169.42 | 10.53 | 296.14 | 0.2004 | -786.0 | -486.3 | |
| 0.00 | 0.88 | 0.00 | 0.44 | 9.09 | 169.18 | 10.29 | 284.15 | 0.1828 | 772.0 | 604.7 | |
| 0.00 | 0.79 | 0.00 | 0.40 | 10.75 | 168.86 | 9.97 | 293.29 | 0.1861 | 748.0 | 625.9 | |
| 0.00 | 1.58 | 0.00 | 0.80 | 15.08 | 168.16 | 9.27 | 313.59 | 0.2158 | 910.0 | 670.4 | |
| 0.00 | 1.58 | 0.00 | 0.79 | 8.73 | 167.84 | 8.96 | 283.76 | 0.1592 | 838.0 | 530.4 | |
| 0.00 | 0.88 | 0.00 | 0.44 | 12.21 | 167.92 | 9.03 | 302.67 | 0.1831 | -655.0 | -492.1 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 12.01 | 167.57 | 8.68 | 302.68 | 0.1763 | 683.0 | 527.5 | |
| 0.00 | 1.50 | 0.00 | 0.75 | 12.29 | 167.02 | 8.14 | 305.73 | 0.1711 | 1002.0 | 853.8 | |
| 0.00 | 1.41 | 0.00 | 0.71 | 14.03 | 165.80 | 6.92 | 317.90 | 0.1751 | 888.0 | 705.4 | |
| 0.00 | 1.06 | 0.00 | 0.52 | 5.34 | 163.59 | 4.70 | 254.64 | 0.0850 | 740.0 | 468.8 | |
| 0.00 | 0.70 | 0.00 | 0.35 | 14.98 | 162.44 | 3.55 | 337.59 | 0.1577 | 778.0 | 650.4 | |
| 0.00 | 7.13 | 0.00 | 3.56 | 12.86 | 161.97 | 3.08 | 334.19 | 0.1210 | 1037.0 | 786.7 | |
| 0.00 | 8.01 | 0.00 | 3.99 | 13.08 | 161.29 | 2.41 | 339.94 | 0.1199 | 842.0 | 717.8 | |
| 0.00 | 1.58 | 0.00 | 0.79 | 13.87 | 161.15 | 2.26 | 343.04 | 0.1321 | 712.0 | 516.1 | |
| 0.00 | 1.32 | 0.00 | 0.66 | 13.35 | 160.93 | 2.04 | 343.48 | 0.1225 | 961.0 | 768.7 | |
| 0.00 | 1.85 | 0.00 | 0.92 | 14.05 | 160.81 | 1.93 | 345.81 | 0.1336 | 684.0 | 373.9 | |
| 0.00 | 1.14 | 0.00 | 0.57 | 13.24 | 160.40 | 1.52 | 347.35 | 0.1182 | 892.0 | 644.5 | |
| 0.00 | 0.62 | 0.00 | 0.31 | 13.72 | 160.01 | 1.12 | 351.24 | 0.1252 | 353.0 | 504.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
