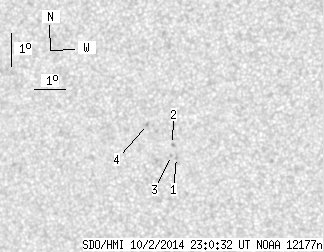

SDO HMI 2014-10-02 23:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.31 | 0.00 | 2.27 | 4.55 | 138.95 | -19.93 | 95.00 | 0.3427 | -57.8 | -29.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-02 23:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.46 | 4.14 | 139.32 | -19.57 | 96.34 | 0.3376 | -812.0 | -672.1 | |
| 0.00 | 1.23 | 0.00 | 0.65 | 4.52 | 139.18 | -19.70 | 95.15 | 0.3390 | -875.0 | -769.9 | |
| 0.00 | 0.88 | 0.00 | 0.46 | 4.19 | 139.16 | -19.73 | 96.11 | 0.3401 | 567.0 | 455.7 | |
| 0.00 | 1.32 | 0.00 | 0.70 | 5.09 | 138.36 | -20.52 | 93.24 | 0.3513 | 889.0 | 763.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
