SDO HMI 2014-10-03 00:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 93.82 | 497.89 | 47.14 | 250.10 | -1.51 | 153.64 | -4.69 | 150.51 | 0.1660 | 726.6 | 365.3 | |
|
previous
or next observation for the same group /

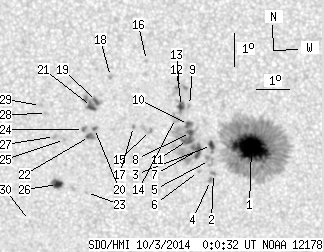

back to the solar disc SDO HMI 2014-10-03 00:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.76 | 338.44 | 28.47 | 169.79 | -1.63 | 154.54 | -3.79 | 155.27 | 0.1589 | 1494.3 | 435.0 | |
| 0.00 | 2.20 | 0.00 | 1.11 | -2.43 | 153.39 | -4.94 | 151.31 | 0.1800 | 1038.0 | 851.1 | |
| 2.99 | 9.06 | 1.50 | 4.55 | -1.58 | 153.34 | -5.00 | 148.58 | 0.1678 | 1180.7 | 699.4 | |
| 0.00 | 2.20 | 0.00 | 1.11 | -2.64 | 153.30 | -5.03 | 151.43 | 0.1840 | 910.0 | 791.9 | |
| 0.00 | 7.04 | 0.00 | 3.54 | -2.03 | 153.28 | -5.06 | 149.63 | 0.1751 | 603.0 | 722.0 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -2.37 | 152.94 | -5.39 | 148.98 | 0.1831 | 676.0 | 572.1 | |
| 6.16 | 65.91 | 3.10 | 33.15 | -1.73 | 152.92 | -5.42 | 146.96 | 0.1740 | 1025.2 | 387.1 | |
| 2.73 | -7.00 | 1.37 | -7.00 | -1.19 | 152.71 | -5.63 | 144.16 | 0.1682 | 1130.9 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -0.37 | 152.68 | -5.66 | 140.98 | 0.1573 | 910.0 | 643.0 | |
| 2.20 | -7.00 | 1.10 | -7.00 | -0.95 | 152.65 | -5.69 | 143.01 | 0.1655 | 1037.0 | 999999 | |
| 5.02 | -7.00 | 2.52 | -7.00 | -1.43 | 152.61 | -5.72 | 144.55 | 0.1726 | 992.2 | 999999 | |
| 3.34 | 6.60 | 1.68 | 3.31 | -0.41 | 152.44 | -5.90 | 139.93 | 0.1603 | 1138.8 | 724.5 | |
| 0.00 | 7.04 | 0.00 | 3.53 | 0.14 | 152.38 | -5.96 | 137.36 | 0.1539 | 1080.0 | 883.5 | |
| 0.00 | 6.51 | 0.00 | 3.27 | -0.77 | 152.26 | -6.08 | 140.49 | 0.1672 | 633.0 | 579.6 | |
| 0.00 | 2.02 | 0.00 | 1.02 | -1.14 | 151.50 | -6.84 | 138.54 | 0.1805 | 1080.0 | 805.3 | |
| 0.00 | 1.23 | 0.00 | 0.62 | 0.97 | 151.38 | -6.95 | 129.00 | 0.1565 | 748.0 | 567.9 | |
| 0.00 | 1.32 | 0.00 | 0.67 | -1.03 | 150.99 | -7.35 | 136.03 | 0.1850 | 792.0 | 644.5 | |
| 0.00 | 2.29 | 0.00 | 1.15 | 0.47 | 150.29 | -8.04 | 127.25 | 0.1766 | -1023.0 | -810.4 | |
| 1.76 | 17.60 | 0.89 | 8.88 | -0.29 | 149.87 | -8.47 | 129.05 | 0.1905 | -1179.6 | -816.7 | |
| 0.62 | 6.95 | 0.31 | 3.52 | -1.11 | 149.80 | -8.53 | 132.01 | 0.2005 | -1149.3 | -895.1 | |
| 3.61 | -19.00 | 1.82 | -19.00 | -0.44 | 149.72 | -8.62 | 129.17 | 0.1942 | -1054.5 | 999999 | |
| 2.11 | -20.00 | 1.07 | -20.00 | -1.35 | 149.65 | -8.68 | 132.39 | 0.2053 | -1161.4 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.45 | -3.05 | 149.55 | -8.79 | 137.61 | 0.2273 | -701.0 | -568.9 | |
| 0.62 | 2.38 | 0.31 | 1.20 | -1.14 | 149.47 | -8.86 | 131.04 | 0.2052 | -994.7 | -787.8 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -1.45 | 148.89 | -9.44 | 130.35 | 0.2162 | -783.0 | -659.2 | |
| 5.90 | 8.45 | 3.00 | 4.30 | -2.82 | 148.67 | -9.67 | 134.16 | 0.2349 | -1138.4 | -787.0 | |
| 0.00 | 2.73 | 0.00 | 1.38 | -1.37 | 148.59 | -9.75 | 129.14 | 0.2192 | -851.0 | -639.8 | |
| 0.00 | 1.94 | 0.00 | 0.98 | -0.68 | 148.35 | -9.99 | 125.94 | 0.2152 | -929.0 | -649.3 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -0.44 | 148.17 | -10.17 | 124.54 | 0.2153 | -913.0 | -740.4 | |
| 0.00 | 0.88 | 0.00 | 0.45 | -3.94 | 147.80 | -10.53 | 134.89 | 0.2586 | 627.0 | 477.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
