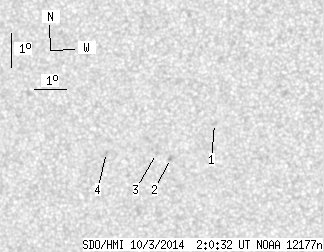

SDO HMI 2014-10-03 02:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.90 | 0.00 | 3.07 | 4.95 | 139.23 | -18.00 | 94.36 | 0.3102 | -58.5 | -201.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-03 02:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.94 | 0.00 | 1.00 | 5.64 | 140.54 | -16.69 | 92.51 | 0.2874 | -665.0 | -552.0 | |
| 0.00 | 1.67 | 0.00 | 0.87 | 4.55 | 139.18 | -18.05 | 95.70 | 0.3118 | -931.0 | -739.9 | |
| 0.00 | 1.50 | 0.00 | 0.78 | 4.68 | 138.73 | -18.50 | 95.10 | 0.3189 | 606.0 | 409.5 | |
| 0.00 | 0.79 | 0.00 | 0.42 | 4.65 | 137.14 | -20.10 | 94.62 | 0.3451 | 756.0 | 621.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
