SDO HMI 2014-10-03 03:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.35 | 67.22 | 7.74 | 36.68 | -10.99 | 139.49 | -17.20 | 135.70 | 0.4177 | 163.3 | 268.1 | |
|
previous
or next observation for the same group /

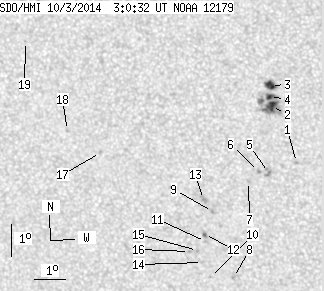

back to the solar disc SDO HMI 2014-10-03 03:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.58 | 0.00 | 0.86 | -11.64 | 141.06 | -15.63 | 139.55 | 0.4084 | 820.0 | 626.9 | |
| 6.07 | 33.10 | 3.27 | 17.84 | -9.91 | 140.36 | -16.32 | 135.33 | 0.3955 | 1146.7 | 649.3 | |
| 5.28 | 7.83 | 2.84 | 4.21 | -9.25 | 140.36 | -16.32 | 134.13 | 0.3881 | 1067.0 | 810.8 | |
| 2.38 | -2.00 | 1.28 | -2.00 | -9.59 | 140.31 | -16.37 | 134.68 | 0.3925 | 1147.1 | 999999 | |
| 0.00 | 4.31 | 0.00 | 2.35 | -11.99 | 140.14 | -16.54 | 138.49 | 0.4220 | 867.0 | 722.4 | |
| 0.00 | 1.58 | 0.00 | 0.87 | -11.97 | 139.82 | -16.86 | 137.91 | 0.4251 | 988.0 | 772.3 | |
| 0.00 | 1.67 | 0.00 | 0.92 | -12.30 | 139.48 | -17.20 | 137.86 | 0.4325 | 741.0 | 527.4 | |
| 0.00 | 1.76 | 0.00 | 0.99 | -15.40 | 138.75 | -17.94 | 141.23 | 0.4761 | -913.0 | -673.2 | |
| 0.00 | 1.32 | 0.00 | 0.73 | -13.29 | 138.24 | -18.44 | 137.42 | 0.4569 | -815.0 | -709.9 | |
| 0.00 | 0.97 | 0.00 | 0.55 | -15.42 | 137.99 | -18.69 | 140.11 | 0.4838 | -709.0 | -458.1 | |
| 0.00 | 1.14 | 0.00 | 0.64 | -14.27 | 137.93 | -18.75 | 138.39 | 0.4711 | -726.0 | -606.8 | |
| 0.62 | 1.41 | 0.35 | 0.79 | -14.04 | 137.92 | -18.77 | 138.04 | 0.4687 | -885.4 | -756.4 | |
| 0.00 | 3.96 | 0.00 | 2.20 | -12.92 | 137.98 | -18.71 | 136.45 | 0.4555 | -952.0 | -749.2 | |
| 0.00 | 1.14 | 0.00 | 0.65 | -14.95 | 137.77 | -18.91 | 139.12 | 0.4805 | -595.0 | -551.7 | |
| 0.00 | 1.14 | 0.00 | 0.64 | -14.57 | 137.64 | -19.04 | 138.39 | 0.4774 | -619.0 | -583.0 | |
| 0.00 | 0.97 | 0.00 | 0.55 | -14.61 | 137.38 | -19.31 | 138.05 | 0.4806 | -733.0 | -657.9 | |
| 0.00 | 1.32 | 0.00 | 0.74 | -11.57 | 134.72 | -21.97 | 129.68 | 0.4782 | -687.0 | -511.1 | |
| 0.00 | 1.23 | 0.00 | 0.70 | -10.92 | 133.68 | -23.01 | 127.32 | 0.4846 | -614.0 | -546.8 | |
| 0.00 | 0.79 | 0.00 | 0.45 | -8.20 | 132.49 | -24.20 | 121.22 | 0.4764 | 770.0 | 658.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
