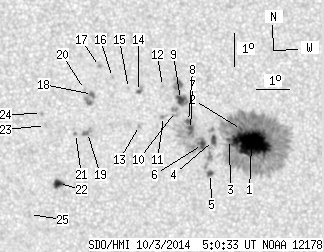

SDO HMI 2014-10-03 05:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 87.07 | 490.98 | 43.61 | 245.90 | -1.50 | 153.80 | -1.79 | 167.75 | 0.1473 | 847.1 | 389.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-03 05:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.78 | 334.98 | 29.93 | 167.71 | -1.64 | 154.61 | -0.97 | 173.26 | 0.1454 | 1510.8 | 421.7 | |
| 0.97 | -1.00 | 0.48 | -1.00 | -1.22 | 154.32 | -1.27 | 170.75 | 0.1388 | 1132.4 | 999999 | |
| 0.26 | -1.00 | 0.13 | -1.00 | -1.52 | 153.95 | -1.63 | 168.62 | 0.1451 | 1051.7 | 999999 | |
| 3.35 | 87.42 | 1.68 | 43.80 | -1.55 | 153.47 | -2.11 | 165.45 | 0.1475 | 1212.3 | 582.1 | |
| 1.76 | -4.00 | 0.88 | -4.00 | -2.56 | 153.38 | -2.21 | 166.43 | 0.1648 | 968.2 | 999999 | |
| 3.79 | -4.00 | 1.90 | -4.00 | -1.68 | 153.14 | -2.44 | 163.53 | 0.1511 | 1141.3 | 999999 | |
| 3.08 | -4.00 | 1.54 | -4.00 | -1.22 | 152.78 | -2.80 | 160.27 | 0.1456 | 1183.0 | 999999 | |
| 1.76 | -4.00 | 0.88 | -4.00 | -0.98 | 152.72 | -2.86 | 159.30 | 0.1420 | 1078.8 | 999999 | |
| 5.37 | 19.28 | 2.68 | 9.63 | -0.32 | 152.49 | -3.10 | 155.84 | 0.1329 | 1198.4 | 924.4 | |
| 0.00 | 6.07 | 0.00 | 3.04 | -0.68 | 152.33 | -3.25 | 155.91 | 0.1397 | 789.0 | 778.6 | |
| 0.00 | 2.82 | 0.00 | 1.41 | -0.83 | 151.97 | -3.61 | 154.05 | 0.1447 | 844.0 | 577.8 | |
| 0.00 | 1.23 | 0.00 | 0.62 | 0.07 | 151.95 | -3.64 | 150.83 | 0.1310 | 773.0 | 577.6 | |
| 0.00 | 2.47 | 0.00 | 1.24 | -1.11 | 151.25 | -4.34 | 150.61 | 0.1548 | 625.0 | 396.3 | |
| 0.79 | 3.43 | 0.40 | 1.72 | -0.08 | 151.22 | -4.37 | 146.83 | 0.1398 | -909.4 | -776.4 | |
| 0.00 | 0.97 | 0.00 | 0.48 | 0.00 | 150.92 | -4.67 | 144.70 | 0.1414 | -827.0 | -618.2 | |
| 0.00 | 0.97 | 0.00 | 0.48 | 0.33 | 150.44 | -5.15 | 140.57 | 0.1419 | -963.0 | -799.7 | |
| 0.00 | 1.76 | 0.00 | 0.88 | 0.66 | 150.05 | -5.54 | 136.96 | 0.1420 | -938.0 | -786.8 | |
| 1.14 | 10.39 | 0.57 | 5.21 | -0.19 | 149.84 | -5.75 | 139.66 | 0.1555 | -1185.9 | -890.8 | |
| 0.00 | 5.28 | 0.00 | 2.66 | -1.34 | 149.68 | -5.90 | 143.28 | 0.1728 | -1179.0 | -963.1 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -0.04 | 149.60 | -5.99 | 137.86 | 0.1563 | -922.0 | -747.1 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -1.37 | 149.32 | -6.27 | 141.75 | 0.1771 | -989.0 | -819.9 | |
| 5.02 | 6.78 | 2.54 | 3.43 | -2.90 | 148.80 | -6.79 | 144.35 | 0.2035 | -1159.1 | -856.0 | |
| 0.00 | 1.50 | 0.00 | 0.75 | -1.14 | 148.42 | -7.17 | 137.07 | 0.1841 | -846.0 | -488.9 | |
| 0.00 | 1.32 | 0.00 | 0.67 | -0.78 | 148.30 | -7.29 | 135.22 | 0.1810 | -1007.0 | -799.5 | |
| 0.00 | 1.94 | 0.00 | 0.98 | -3.85 | 147.91 | -7.68 | 143.60 | 0.2256 | 903.0 | 633.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
