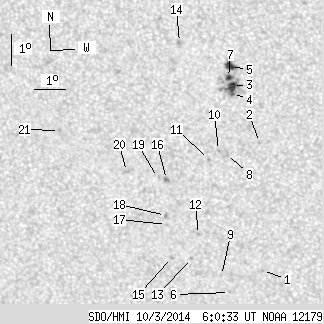

SDO HMI 2014-10-03 06:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.21 | 63.83 | 7.04 | 34.47 | -10.98 | 139.70 | -15.34 | 138.85 | 0.3973 | 295.5 | 288.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-03 06:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.49 | -15.74 | 140.96 | -14.08 | 148.17 | 0.4457 | 768.0 | 639.9 | |
| 0.00 | 1.23 | 0.00 | 0.66 | -11.64 | 141.12 | -13.92 | 142.77 | 0.3910 | 690.0 | 696.3 | |
| 5.55 | 39.70 | 2.96 | 21.21 | -9.90 | 140.36 | -14.68 | 138.35 | 0.3773 | 1117.3 | 635.0 | |
| 0.26 | -3.00 | 0.14 | -3.00 | -10.12 | 140.35 | -14.69 | 138.71 | 0.3800 | 809.0 | 999999 | |
| 5.11 | -3.00 | 2.72 | -3.00 | -9.28 | 140.33 | -14.71 | 137.14 | 0.3702 | 1083.5 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.54 | -16.49 | 139.84 | -15.20 | 147.10 | 0.4647 | 693.0 | 435.5 | |
| 2.29 | -3.00 | 1.22 | -3.00 | -9.63 | 140.25 | -14.79 | 137.63 | 0.3751 | 1154.3 | 999999 | |
| 0.00 | 3.52 | 0.00 | 1.91 | -12.05 | 140.06 | -14.98 | 141.36 | 0.4067 | 722.0 | 614.0 | |
| 0.00 | 0.70 | 0.00 | 0.39 | -15.94 | 139.63 | -15.41 | 146.05 | 0.4596 | 598.0 | 514.1 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -11.93 | 139.81 | -15.23 | 140.71 | 0.4077 | 905.0 | 781.1 | |
| 0.00 | 1.32 | 0.00 | 0.72 | -12.23 | 139.47 | -15.57 | 140.56 | 0.4147 | 749.0 | 621.9 | |
| 0.00 | 1.14 | 0.00 | 0.63 | -14.64 | 138.99 | -16.06 | 143.24 | 0.4490 | -871.0 | -700.7 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -15.42 | 138.70 | -16.34 | 143.81 | 0.4613 | -873.0 | -783.5 | |
| 0.00 | 1.85 | 0.00 | 0.99 | -8.58 | 138.75 | -16.29 | 132.88 | 0.3802 | 846.0 | 679.3 | |
| 0.00 | 1.41 | 0.00 | 0.79 | -15.41 | 138.05 | -16.99 | 142.73 | 0.4672 | -636.0 | -596.1 | |
| 0.00 | 2.47 | 0.00 | 1.36 | -12.91 | 138.08 | -16.96 | 139.20 | 0.4369 | -1027.0 | -863.9 | |
| 0.00 | 1.06 | 0.00 | 0.59 | -14.35 | 137.97 | -17.07 | 141.14 | 0.4551 | -767.0 | -557.8 | |
| 0.00 | 1.94 | 0.00 | 1.07 | -14.06 | 137.96 | -17.08 | 140.72 | 0.4518 | -908.0 | -766.1 | |
| 0.00 | 0.53 | 0.00 | 0.29 | -12.86 | 137.80 | -17.24 | 138.64 | 0.4392 | -548.0 | -620.8 | |
| 0.00 | 2.29 | 0.00 | 1.27 | -12.70 | 136.81 | -18.23 | 136.81 | 0.4479 | -656.0 | -594.1 | |
| 0.00 | 1.06 | 0.00 | 0.59 | -11.48 | 134.72 | -20.32 | 131.74 | 0.4580 | -870.0 | -663.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
