SDO HMI 2014-10-03 07:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.89 | 0.00 | 3.70 | 14.11 | 192.17 | 37.68 | 284.49 | 0.6161 | -711.0 | -615.8 | |
|
previous
or next observation for the same group /

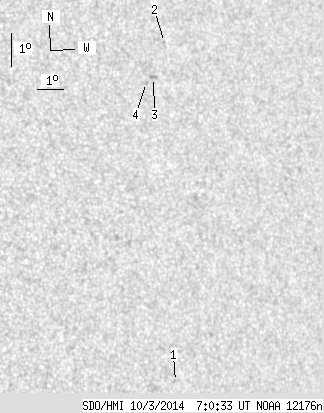

back to the solar disc SDO HMI 2014-10-03 07:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.70 | 0.00 | 0.44 | 5.84 | 191.69 | 37.20 | 270.94 | 0.6037 | -681.0 | -549.9 | |
| 0.00 | 1.23 | 0.00 | 0.78 | 16.03 | 192.81 | 38.32 | 287.47 | 0.6270 | -661.0 | -506.6 | |
| 0.00 | 2.73 | 0.00 | 1.71 | 15.01 | 192.15 | 37.66 | 286.00 | 0.6162 | -761.0 | -665.5 | |
| 0.00 | 1.23 | 0.00 | 0.77 | 14.88 | 191.85 | 37.36 | 285.86 | 0.6119 | -741.0 | -653.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
