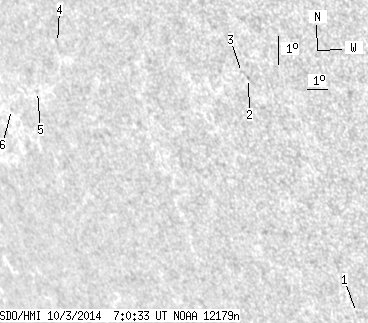

SDO HMI 2014-10-03 07:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.77 | 0.00 | 5.82 | -15.69 | 104.20 | -50.30 | 114.80 | 0.8148 | 154.8 | 37.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-03 07:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.26 | 0.00 | 0.20 | -22.52 | 112.83 | -41.67 | 126.83 | 0.7696 | 585.0 | 515.3 | |
| 0.00 | 1.14 | 0.00 | 0.86 | -15.00 | 110.53 | -43.96 | 116.70 | 0.7528 | 659.0 | 549.5 | |
| 0.00 | 1.50 | 0.00 | 1.13 | -14.83 | 110.27 | -44.22 | 116.36 | 0.7547 | 481.0 | 372.6 | |
| 0.00 | 1.85 | 0.00 | 1.66 | -14.64 | 101.66 | -52.84 | 112.44 | 0.8363 | -45.0 | -89.0 | |
| 0.00 | 1.23 | 0.00 | 1.17 | -16.37 | 99.93 | -54.56 | 113.76 | 0.8561 | -447.0 | -368.2 | |
| 0.00 | 0.79 | 0.00 | 0.80 | -17.13 | 98.15 | -56.34 | 113.96 | 0.8725 | -304.0 | -245.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
