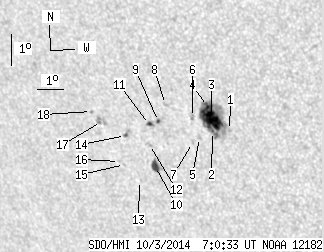

SDO HMI 2014-10-03 07:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.84 | 102.54 | 26.34 | 66.44 | -13.26 | 119.38 | -35.12 | 119.73 | 0.6468 | 413.4 | 142.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-03 07:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.56 | -13.34 | 120.92 | -33.57 | 120.94 | 0.6296 | 626.0 | 456.0 | |
| 0.26 | 66.55 | 0.17 | 42.52 | -13.41 | 120.28 | -34.22 | 120.56 | 0.6376 | 553.3 | 438.0 | |
| 28.79 | -2.00 | 18.41 | -2.00 | -13.00 | 120.31 | -34.19 | 120.01 | 0.6346 | 969.8 | 999999 | |
| 3.52 | -2.00 | 2.25 | -2.00 | -12.62 | 120.22 | -34.28 | 119.42 | 0.6332 | 910.1 | 999999 | |
| 0.00 | 2.20 | 0.00 | 1.42 | -13.64 | 119.75 | -34.74 | 120.49 | 0.6450 | -48.0 | -5.7 | |
| 0.00 | 2.73 | 0.00 | 1.76 | -13.01 | 119.59 | -34.90 | 119.52 | 0.6430 | 546.0 | 314.3 | |
| 0.00 | 1.58 | 0.00 | 1.03 | -13.82 | 119.45 | -35.04 | 120.53 | 0.6495 | 261.0 | 106.0 | |
| 0.00 | 2.11 | 0.00 | 1.38 | -12.67 | 118.63 | -35.87 | 118.38 | 0.6521 | 518.0 | 277.2 | |
| 0.79 | 1.50 | 0.52 | 0.98 | -13.23 | 118.26 | -36.23 | 118.91 | 0.6596 | -575.1 | -535.6 | |
| 5.28 | 8.28 | 3.53 | 5.52 | -14.69 | 117.87 | -36.62 | 120.61 | 0.6727 | -750.8 | -559.1 | |
| 1.50 | 2.99 | 0.99 | 1.98 | -13.35 | 117.90 | -36.60 | 118.83 | 0.6645 | 585.4 | 403.5 | |
| 0.00 | 1.32 | 0.00 | 0.88 | -14.00 | 117.78 | -36.72 | 119.62 | 0.6696 | 441.0 | 324.1 | |
| 0.00 | 0.35 | 0.00 | 0.24 | -15.20 | 117.15 | -37.35 | 120.78 | 0.6837 | -550.0 | -563.8 | |
| 0.70 | 3.17 | 0.47 | 2.13 | -13.77 | 116.89 | -37.61 | 118.75 | 0.6783 | -776.1 | -469.2 | |
| 0.00 | 0.26 | 0.00 | 0.18 | -14.72 | 116.66 | -37.84 | 119.84 | 0.6863 | -662.0 | -711.3 | |
| 0.00 | 0.79 | 0.00 | 0.54 | -14.63 | 116.48 | -38.02 | 119.62 | 0.6878 | -694.0 | -607.1 | |
| 0.00 | 6.69 | 0.00 | 4.54 | -13.39 | 116.02 | -38.48 | 117.70 | 0.6860 | -608.0 | -582.2 | |
| 0.00 | 1.14 | 0.00 | 0.78 | -13.10 | 115.68 | -38.82 | 117.11 | 0.6882 | -605.0 | -521.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
