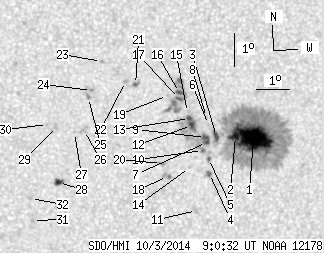

SDO HMI 2014-10-03 09:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 83.51 | 482.86 | 41.81 | 241.75 | -1.51 | 153.92 | 0.52 | 183.65 | 0.1439 | 823.9 | 407.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-03 09:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.60 | 345.13 | 26.84 | 172.79 | -1.61 | 154.73 | 1.33 | 189.26 | 0.1453 | 1474.1 | 430.3 | |
| 7.04 | -1.00 | 3.52 | -1.00 | -1.54 | 154.19 | 0.79 | 185.59 | 0.1430 | 1248.8 | 999999 | |
| 3.17 | -1.00 | 1.59 | -1.00 | -1.54 | 153.62 | 0.22 | 181.59 | 0.1424 | 1153.2 | 999999 | |
| 1.14 | 3.96 | 0.57 | 1.99 | -2.66 | 153.41 | 0.01 | 180.08 | 0.1618 | 1003.7 | 749.3 | |
| 0.70 | 3.26 | 0.35 | 1.63 | -2.21 | 153.38 | -0.02 | 179.89 | 0.1539 | 807.2 | 671.5 | |
| 0.00 | 0.79 | 0.00 | 0.40 | -1.18 | 153.39 | -0.01 | 179.89 | 0.1360 | 892.0 | 775.8 | |
| 1.67 | 56.60 | 0.84 | 28.32 | -1.72 | 153.32 | -0.08 | 179.48 | 0.1455 | 1007.9 | 494.4 | |
| 0.00 | 0.79 | 0.00 | 0.40 | -0.97 | 153.33 | -0.07 | 179.43 | 0.1323 | 819.0 | 647.3 | |
| 2.82 | -7.00 | 1.41 | -7.00 | -1.57 | 153.29 | -0.11 | 179.26 | 0.1429 | 1148.0 | 999999 | |
| 0.53 | -7.00 | 0.26 | -7.00 | -1.97 | 153.20 | -0.20 | 178.69 | 0.1497 | 729.3 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.71 | -3.79 | 153.02 | -0.38 | 177.91 | 0.1814 | 818.0 | 531.5 | |
| 3.52 | -7.00 | 1.76 | -7.00 | -1.21 | 152.88 | -0.52 | 176.14 | 0.1368 | 1206.4 | 999999 | |
| 2.02 | -7.00 | 1.01 | -7.00 | -1.00 | 152.82 | -0.58 | 175.59 | 0.1333 | 1105.9 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -2.48 | 152.81 | -0.59 | 176.29 | 0.1590 | 806.0 | 611.8 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -0.82 | 152.76 | -0.64 | 175.02 | 0.1302 | 664.0 | 687.3 | |
| 1.76 | 33.27 | 0.88 | 16.61 | -0.21 | 152.52 | -0.88 | 172.59 | 0.1202 | 1199.3 | 852.2 | |
| 1.41 | -16.00 | 0.70 | -16.00 | -0.39 | 152.52 | -0.88 | 172.78 | 0.1233 | 1262.0 | 999999 | |
| 0.00 | 3.70 | 0.00 | 1.86 | -2.76 | 152.15 | -1.25 | 172.38 | 0.1648 | -773.0 | -729.6 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -0.30 | 152.16 | -1.24 | 169.77 | 0.1227 | 469.0 | 342.9 | |
| 0.00 | 2.99 | 0.00 | 1.50 | -2.36 | 151.97 | -1.43 | 170.92 | 0.1585 | 906.0 | 650.1 | |
| 0.70 | 3.52 | 0.35 | 1.76 | 0.03 | 151.20 | -2.20 | 161.43 | 0.1213 | -943.9 | -671.8 | |
| 0.00 | 2.20 | 0.00 | 1.10 | 0.12 | 150.90 | -2.50 | 158.84 | 0.1216 | -909.0 | -671.0 | |
| 0.00 | 1.23 | 0.00 | 0.61 | 0.72 | 150.18 | -3.22 | 151.22 | 0.1173 | -869.0 | -700.9 | |
| 0.00 | 1.58 | 0.00 | 0.79 | -0.16 | 149.88 | -3.52 | 152.39 | 0.1332 | -1130.0 | -932.1 | |
| 0.00 | 1.76 | 0.00 | 0.88 | -0.37 | 149.78 | -3.62 | 152.51 | 0.1372 | -1094.0 | -908.4 | |
| 0.00 | 4.67 | 0.00 | 2.34 | -1.37 | 149.66 | -3.74 | 154.79 | 0.1537 | -911.0 | -736.8 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -1.43 | 149.36 | -4.04 | 153.22 | 0.1570 | -993.0 | -722.4 | |
| 3.43 | 5.37 | 1.73 | 2.71 | -2.95 | 148.87 | -4.53 | 154.56 | 0.1843 | -1046.2 | -871.9 | |
| 0.00 | 2.90 | 0.00 | 1.46 | -1.25 | 148.82 | -4.58 | 149.65 | 0.1587 | -923.0 | -734.0 | |
| 0.00 | 0.70 | 0.00 | 0.35 | -1.20 | 148.55 | -4.85 | 148.00 | 0.1603 | -733.0 | -607.1 | |
| 0.00 | 1.67 | 0.00 | 0.85 | -4.12 | 148.08 | -5.32 | 153.51 | 0.2082 | 858.0 | 732.2 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -3.45 | 148.03 | -5.37 | 151.76 | 0.1984 | 919.0 | 764.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
