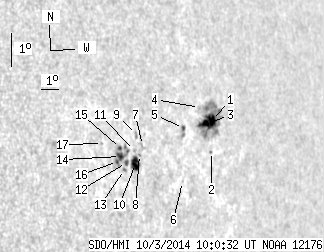

SDO HMI 2014-10-03 10:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.69 | 103.94 | 26.49 | 96.72 | 6.98 | 211.04 | 58.19 | 274.11 | 0.8471 | -90.8 | 12.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-03 10:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.62 | 55.80 | 8.46 | 54.64 | 7.23 | 213.00 | 60.14 | 274.54 | 0.8651 | -641.2 | -157.4 | |
| 0.00 | 1.06 | 0.00 | 1.03 | 6.32 | 212.80 | 59.95 | 273.46 | 0.8639 | -381.0 | -283.8 | |
| 5.98 | -1.00 | 5.80 | -1.00 | 7.15 | 212.61 | 59.76 | 274.42 | 0.8618 | -863.2 | 999999 | |
| 0.00 | 1.67 | 0.00 | 1.61 | 7.69 | 212.37 | 59.52 | 275.03 | 0.8594 | -319.0 | -274.4 | |
| 1.06 | 4.31 | 0.99 | 4.03 | 7.16 | 211.31 | 58.45 | 274.34 | 0.8501 | -599.9 | -550.8 | |
| 0.00 | 0.26 | 0.00 | 0.25 | 5.59 | 210.96 | 58.11 | 272.46 | 0.8479 | -378.0 | -351.3 | |
| 0.00 | 2.73 | 0.00 | 2.40 | 6.87 | 208.94 | 56.09 | 273.84 | 0.8279 | 164.0 | 104.3 | |
| 0.00 | 1.23 | 0.00 | 1.08 | 6.62 | 208.73 | 55.88 | 273.52 | 0.8261 | 190.0 | 124.2 | |
| 0.00 | 2.20 | 0.00 | 1.92 | 7.23 | 208.68 | 55.83 | 274.25 | 0.8252 | 405.0 | 328.0 | |
| 7.48 | 9.95 | 6.50 | 8.64 | 6.38 | 208.47 | 55.62 | 273.20 | 0.8237 | 547.5 | 283.7 | |
| 0.00 | 1.41 | 0.00 | 1.22 | 6.77 | 208.49 | 55.64 | 273.67 | 0.8236 | -68.0 | 81.4 | |
| 0.88 | 21.03 | 0.76 | 17.96 | 6.45 | 208.01 | 55.15 | 273.25 | 0.8190 | 572.5 | 537.0 | |
| 0.00 | 1.50 | 0.00 | 1.28 | 6.25 | 207.87 | 55.01 | 273.00 | 0.8177 | 570.0 | 439.4 | |
| 3.26 | -12.00 | 2.78 | -12.00 | 6.66 | 207.72 | 54.87 | 273.49 | 0.8160 | 803.4 | 999999 | |
| 0.79 | -12.00 | 0.68 | -12.00 | 6.90 | 207.76 | 54.91 | 273.78 | 0.8163 | 691.3 | 999999 | |
| 0.62 | -12.00 | 0.52 | -12.00 | 6.52 | 207.54 | 54.69 | 273.31 | 0.8143 | 760.0 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.66 | 7.13 | 206.86 | 54.01 | 274.01 | 0.8070 | 526.0 | 503.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
