SDO HMI 2014-10-03 10:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.59 | 125.86 | 25.49 | 79.49 | -13.27 | 119.85 | -33.00 | 121.27 | 0.6223 | 458.6 | 99.9 | |
|
previous
or next observation for the same group /

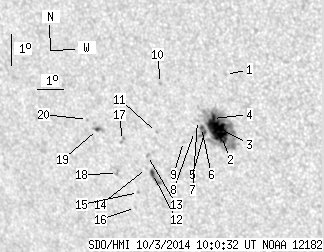

back to the solar disc SDO HMI 2014-10-03 10:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.49 | -11.30 | 121.04 | -31.81 | 119.33 | 0.5952 | 100.0 | 105.1 | |
| 11.71 | 99.36 | 7.33 | 62.18 | -13.29 | 120.62 | -32.23 | 121.89 | 0.6136 | 864.2 | 289.5 | |
| 18.75 | -2.00 | 11.73 | -2.00 | -13.01 | 120.51 | -32.34 | 121.41 | 0.6129 | 988.8 | 999999 | |
| 4.58 | -2.00 | 2.86 | -2.00 | -12.74 | 120.37 | -32.48 | 120.91 | 0.6127 | 920.7 | 999999 | |
| 1.67 | -2.00 | 1.05 | -2.00 | -13.20 | 120.01 | -32.84 | 121.29 | 0.6201 | 563.3 | 999999 | |
| 0.88 | -2.00 | 0.55 | -2.00 | -13.05 | 119.92 | -32.93 | 121.00 | 0.6201 | 520.6 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.55 | -12.83 | 119.81 | -33.04 | 120.61 | 0.6200 | 373.0 | 280.2 | |
| 0.00 | 0.88 | 0.00 | 0.56 | -13.19 | 119.64 | -33.21 | 121.00 | 0.6244 | -128.0 | -143.2 | |
| 0.00 | 0.97 | 0.00 | 0.62 | -13.54 | 119.18 | -33.67 | 121.13 | 0.6320 | -137.0 | 2.2 | |
| 0.00 | 1.06 | 0.00 | 0.67 | -11.74 | 118.60 | -34.25 | 118.18 | 0.6274 | 698.0 | 618.2 | |
| 0.00 | 1.06 | 0.00 | 0.68 | -13.32 | 118.21 | -34.65 | 120.12 | 0.6418 | -610.0 | -464.8 | |
| 1.94 | 8.18 | 1.27 | 5.35 | -14.66 | 117.82 | -35.03 | 121.65 | 0.6547 | -765.7 | -644.5 | |
| 0.00 | 1.41 | 0.00 | 0.92 | -14.09 | 117.74 | -35.12 | 120.83 | 0.6520 | 591.0 | 402.5 | |
| 0.00 | 0.53 | 0.00 | 0.35 | -14.51 | 117.62 | -35.23 | 121.31 | 0.6560 | 160.0 | 207.5 | |
| 0.00 | 1.06 | 0.00 | 0.70 | -15.31 | 117.16 | -35.69 | 122.05 | 0.6662 | -691.0 | -580.6 | |
| 0.00 | 1.06 | 0.00 | 0.70 | -15.81 | 116.94 | -35.91 | 122.55 | 0.6718 | -546.0 | -426.2 | |
| 0.00 | 2.11 | 0.00 | 1.39 | -13.67 | 116.86 | -35.99 | 119.65 | 0.6594 | -690.0 | -609.6 | |
| 0.00 | 1.41 | 0.00 | 0.94 | -14.75 | 116.46 | -36.39 | 120.83 | 0.6704 | -734.0 | -655.9 | |
| 1.06 | 4.31 | 0.70 | 2.86 | -13.38 | 115.95 | -36.90 | 118.66 | 0.6681 | -728.9 | -618.4 | |
| 0.00 | 0.79 | 0.00 | 0.53 | -13.09 | 115.61 | -37.24 | 118.05 | 0.6702 | -694.0 | -621.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
