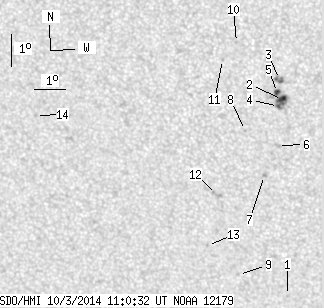

SDO HMI 2014-10-03 11:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.65 | 40.90 | 4.04 | 21.82 | -10.73 | 139.53 | -12.78 | 143.62 | 0.3684 | 453.4 | 381.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-03 11:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.70 | 0.00 | 0.39 | -16.16 | 140.19 | -12.12 | 152.32 | 0.4359 | 639.0 | 598.0 | |
| 4.22 | 19.27 | 2.23 | 10.19 | -9.91 | 140.35 | -11.96 | 144.08 | 0.3494 | 1092.6 | 728.7 | |
| 0.00 | 5.54 | 0.00 | 2.92 | -9.29 | 140.28 | -12.03 | 142.83 | 0.3419 | 1187.0 | 946.3 | |
| 1.23 | -2.00 | 0.65 | -2.00 | -10.14 | 140.22 | -12.09 | 144.15 | 0.3536 | 753.8 | 999999 | |
| 2.20 | -2.00 | 1.16 | -2.00 | -9.70 | 140.20 | -12.10 | 143.38 | 0.3480 | 1079.1 | 999999 | |
| 0.00 | 2.46 | 0.00 | 1.31 | -11.36 | 140.13 | -12.17 | 145.94 | 0.3707 | 637.0 | 593.1 | |
| 0.00 | 1.67 | 0.00 | 0.90 | -12.32 | 139.68 | -12.63 | 146.41 | 0.3877 | 892.0 | 756.2 | |
| 0.00 | 0.70 | 0.00 | 0.38 | -10.92 | 139.15 | -13.16 | 143.13 | 0.3741 | 721.0 | 694.8 | |
| 0.00 | 1.14 | 0.00 | 0.63 | -15.52 | 138.66 | -13.64 | 148.67 | 0.4389 | -707.0 | -487.0 | |
| 0.00 | 1.32 | 0.00 | 0.70 | -8.17 | 138.98 | -13.32 | 137.83 | 0.3413 | 558.0 | 414.7 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -8.71 | 138.52 | -13.78 | 137.92 | 0.3529 | 809.0 | 712.1 | |
| 0.00 | 5.02 | 0.00 | 2.72 | -12.97 | 138.13 | -14.18 | 144.24 | 0.4102 | -574.0 | -737.3 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -14.61 | 137.73 | -14.57 | 145.79 | 0.4349 | -759.0 | -618.8 | |
| 0.00 | 1.23 | 0.00 | 0.68 | -10.66 | 132.47 | -19.84 | 131.01 | 0.4438 | -762.0 | -582.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
