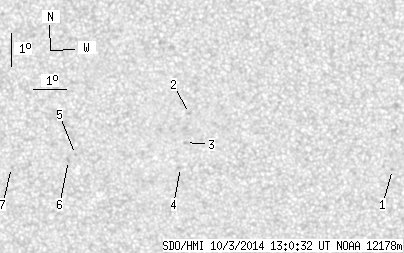

SDO HMI 2014-10-03 13:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.02 | 0.00 | 4.15 | -5.17 | 139.39 | -11.81 | 135.65 | 0.2906 | -544.9 | -439.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-03 13:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.49 | -5.56 | 146.36 | -4.84 | 158.20 | 0.2273 | 750.0 | 628.7 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -3.94 | 140.21 | -10.99 | 133.52 | 0.2636 | -766.0 | -650.9 | |
| 0.00 | 1.76 | 0.00 | 0.91 | -4.83 | 140.08 | -11.13 | 135.52 | 0.2758 | -724.0 | -564.8 | |
| 0.00 | 1.41 | 0.00 | 0.73 | -5.60 | 139.91 | -11.30 | 136.98 | 0.2871 | -718.0 | -431.7 | |
| 0.00 | 0.79 | 0.00 | 0.41 | -5.28 | 136.67 | -14.54 | 128.96 | 0.3229 | -748.0 | -571.0 | |
| 0.00 | 1.41 | 0.00 | 0.74 | -5.47 | 136.45 | -14.76 | 128.98 | 0.3277 | -842.0 | -710.5 | |
| 0.00 | 0.62 | 0.00 | 0.33 | -5.74 | 134.65 | -16.55 | 126.38 | 0.3537 | -766.0 | -594.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
