SDO HMI 2014-10-03 14:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.96 | 0.00 | 3.57 | -5.08 | 140.84 | -9.81 | 140.96 | 0.2682 | -295.5 | -296.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-03 14:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

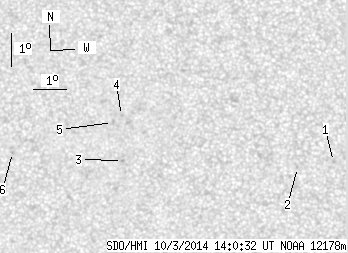

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.54 | -5.53 | 146.30 | -4.36 | 160.16 | 0.2238 | 810.0 | 675.2 | |
| 0.00 | 0.88 | 0.00 | 0.45 | -5.72 | 145.21 | -5.45 | 156.05 | 0.2338 | 821.0 | 723.6 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -5.59 | 139.88 | -10.77 | 138.32 | 0.2810 | -955.0 | -759.0 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -4.21 | 139.88 | -10.78 | 134.82 | 0.2642 | -873.0 | -716.7 | |
| 0.00 | 1.76 | 0.00 | 0.90 | -4.43 | 139.60 | -11.06 | 134.67 | 0.2701 | -671.0 | -612.5 | |
| 0.00 | 1.23 | 0.00 | 0.64 | -5.42 | 136.49 | -14.17 | 130.04 | 0.3196 | -905.0 | -654.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
