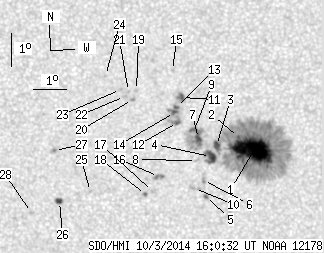

SDO HMI 2014-10-03 16:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 87.30 | 432.55 | 43.84 | 217.21 | -1.46 | 154.13 | 4.57 | 209.36 | 0.1627 | 904.6 | 446.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-03 16:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.88 | 340.03 | 30.09 | 170.89 | -1.55 | 154.83 | 5.27 | 213.05 | 0.1693 | 1482.1 | 439.4 | |
| 0.26 | -1.00 | 0.13 | -1.00 | -1.15 | 154.38 | 4.82 | 212.02 | 0.1593 | 1120.7 | 999999 | |
| 3.78 | -1.00 | 1.90 | -1.00 | -1.39 | 153.72 | 4.16 | 207.63 | 0.1571 | 1213.7 | 999999 | |
| 8.27 | -1.00 | 4.15 | -1.00 | -1.72 | 153.54 | 3.98 | 205.68 | 0.1609 | 1022.4 | 999999 | |
| 0.70 | 2.29 | 0.35 | 1.15 | -2.93 | 153.39 | 3.83 | 202.00 | 0.1790 | 984.2 | 807.9 | |
| 0.00 | 2.73 | 0.00 | 1.37 | -2.45 | 153.33 | 3.77 | 202.73 | 0.1709 | 893.0 | 764.9 | |
| 3.25 | 31.13 | 1.63 | 15.59 | -1.17 | 153.18 | 3.62 | 205.08 | 0.1496 | 1245.1 | 629.5 | |
| 0.00 | 1.76 | 0.00 | 0.88 | -1.84 | 153.12 | 3.56 | 202.97 | 0.1598 | 683.0 | 526.2 | |
| 2.02 | -7.00 | 1.01 | -7.00 | -0.90 | 153.06 | 3.50 | 205.12 | 0.1445 | 1031.5 | 999999 | |
| 0.00 | 4.48 | 0.00 | 2.26 | -2.69 | 153.06 | 3.50 | 200.74 | 0.1730 | 757.0 | 644.0 | |
| 2.20 | 7.03 | 1.10 | 3.51 | 0.07 | 152.67 | 3.11 | 205.56 | 0.1263 | 1042.6 | 890.1 | |
| 1.14 | 18.73 | 0.57 | 9.36 | -0.68 | 152.55 | 2.99 | 202.40 | 0.1375 | 1066.3 | 810.5 | |
| 1.14 | -12.00 | 0.57 | -12.00 | -0.23 | 152.52 | 2.96 | 203.52 | 0.1300 | 1140.3 | 999999 | |
| 1.76 | -12.00 | 0.88 | -12.00 | -0.38 | 152.46 | 2.90 | 202.64 | 0.1320 | 1220.2 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.57 | 0.89 | 152.40 | 2.84 | 206.52 | 0.1115 | 820.0 | 615.8 | |
| 0.00 | 4.13 | 0.00 | 2.07 | -2.31 | 151.98 | 2.42 | 195.24 | 0.1611 | 1119.0 | 919.3 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -2.77 | 151.80 | 2.24 | 193.50 | 0.1680 | -733.0 | -552.1 | |
| 0.53 | 1.41 | 0.27 | 0.71 | -2.86 | 151.59 | 2.03 | 192.16 | 0.1687 | -931.7 | -757.8 | |
| 0.00 | 1.67 | 0.00 | 0.83 | 0.29 | 151.32 | 1.76 | 195.64 | 0.1145 | -259.0 | -210.5 | |
| 0.00 | 1.76 | 0.00 | 0.88 | 0.02 | 151.20 | 1.64 | 194.04 | 0.1185 | -941.0 | -751.3 | |
| 0.00 | 1.32 | 0.00 | 0.66 | 0.26 | 151.08 | 1.52 | 193.53 | 0.1139 | -648.0 | -585.0 | |
| 0.00 | 2.20 | 0.00 | 1.10 | 0.11 | 150.96 | 1.40 | 192.22 | 0.1160 | -729.0 | -624.0 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 0.32 | 150.84 | 1.28 | 191.57 | 0.1120 | -1015.0 | -827.8 | |
| 0.00 | 0.79 | 0.00 | 0.39 | 0.75 | 150.39 | 0.83 | 188.11 | 0.1034 | -768.0 | -589.2 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -2.76 | 149.93 | 0.38 | 182.32 | 0.1634 | -778.0 | -542.6 | |
| 2.37 | 3.87 | 1.19 | 1.94 | -3.07 | 149.00 | -0.55 | 176.71 | 0.1688 | -1093.4 | -801.0 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -1.52 | 148.86 | -0.70 | 175.05 | 0.1423 | -1073.0 | -861.6 | |
| 0.00 | 1.76 | 0.00 | 0.88 | -3.40 | 148.16 | -1.39 | 172.03 | 0.1760 | 806.0 | 729.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
