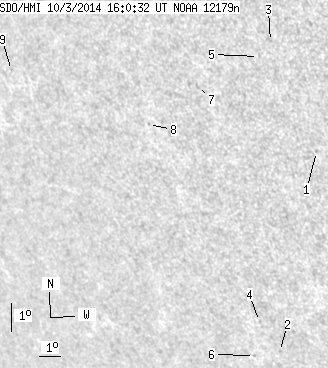

SDO HMI 2014-10-03 16:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.39 | 0.00 | 5.55 | -18.97 | 107.73 | -41.83 | 122.61 | 0.7513 | 424.8 | 333.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-03 16:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.61 | -17.82 | 112.31 | -37.24 | 124.16 | 0.6986 | 514.0 | 386.5 | |
| 0.00 | 0.79 | 0.00 | 0.62 | -24.84 | 108.51 | -41.05 | 129.77 | 0.7776 | 541.0 | 376.8 | |
| 0.00 | 0.53 | 0.00 | 0.36 | -14.34 | 111.28 | -38.28 | 119.04 | 0.6888 | 662.0 | 534.5 | |
| 0.00 | 0.62 | 0.00 | 0.48 | -23.84 | 108.03 | -41.53 | 128.37 | 0.7758 | 555.0 | 498.3 | |
| 0.00 | 0.53 | 0.00 | 0.36 | -14.86 | 110.69 | -38.87 | 119.36 | 0.6982 | 482.0 | 387.8 | |
| 0.00 | 0.88 | 0.00 | 0.71 | -25.08 | 107.30 | -42.26 | 129.27 | 0.7890 | 459.0 | 424.3 | |
| 0.00 | 2.02 | 0.00 | 1.47 | -16.04 | 107.92 | -41.64 | 119.20 | 0.7339 | 318.0 | 315.7 | |
| 0.00 | 0.44 | 0.00 | 0.34 | -17.47 | 105.41 | -44.15 | 119.56 | 0.7661 | 460.0 | 404.4 | |
| 0.00 | 0.70 | 0.00 | 0.60 | -16.24 | 99.47 | -50.08 | 115.33 | 0.8169 | -168.0 | -156.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
