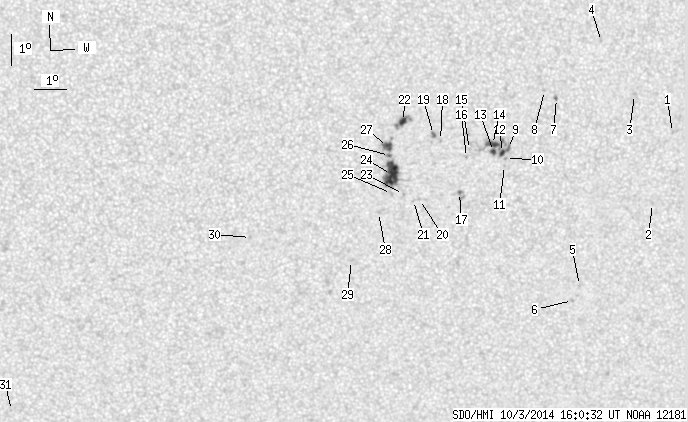

SDO HMI 2014-10-03 16:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.03 | 120.22 | 23.93 | 64.12 | -12.31 | 160.15 | 10.59 | 209.03 | 0.3722 | -186.5 | 40.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-03 16:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.48 | -11.55 | 167.49 | 17.93 | 224.60 | 0.4314 | 672.0 | 584.7 | |
| 0.00 | 1.23 | 0.00 | 0.68 | -13.78 | 167.00 | 17.44 | 220.32 | 0.4518 | 630.0 | 485.9 | |
| 0.00 | 1.76 | 0.00 | 0.95 | -10.30 | 166.20 | 16.64 | 224.57 | 0.4031 | 751.0 | 529.2 | |
| 0.00 | 0.44 | 0.00 | 0.23 | -8.61 | 165.07 | 15.51 | 225.69 | 0.3712 | 748.0 | 618.2 | |
| 0.00 | 0.97 | 0.00 | 0.54 | -16.35 | 164.83 | 15.28 | 213.23 | 0.4633 | 736.0 | 520.8 | |
| 0.00 | 1.49 | 0.00 | 0.84 | -16.83 | 164.65 | 15.09 | 212.33 | 0.4679 | 709.0 | 483.1 | |
| 0.44 | 1.67 | 0.23 | 0.89 | -10.35 | 163.73 | 14.17 | 219.91 | 0.3771 | -823.8 | -674.1 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -10.09 | 163.34 | 13.79 | 219.58 | 0.3698 | -749.0 | -551.6 | |
| 1.32 | 30.51 | 0.71 | 16.32 | -11.88 | 162.29 | 12.74 | 214.48 | 0.3827 | 869.7 | 809.4 | |
| 0.00 | 0.79 | 0.00 | 0.42 | -12.19 | 162.21 | 12.66 | 213.85 | 0.3862 | 619.0 | 575.1 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -12.42 | 162.19 | 12.64 | 213.48 | 0.3889 | 626.0 | 478.8 | |
| 2.20 | -9.00 | 1.18 | -9.00 | -12.00 | 162.11 | 12.55 | 213.91 | 0.3827 | 1054.9 | 999999 | |
| 2.20 | -9.00 | 1.18 | -9.00 | -11.96 | 161.83 | 12.27 | 213.37 | 0.3796 | 1004.7 | 999999 | |
| 5.28 | -9.00 | 2.82 | -9.00 | -11.74 | 161.78 | 12.23 | 213.61 | 0.3762 | 1247.2 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -11.88 | 161.07 | 11.51 | 211.83 | 0.3719 | 450.0 | 276.0 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -12.13 | 160.99 | 11.43 | 211.29 | 0.3747 | 640.0 | 461.6 | |
| 0.53 | 5.28 | 0.28 | 2.84 | -13.24 | 160.82 | 11.26 | 209.42 | 0.3887 | 1005.2 | 710.6 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -11.57 | 160.15 | 10.60 | 210.17 | 0.3600 | 704.0 | 598.7 | |
| 0.88 | 2.29 | 0.47 | 1.21 | -11.38 | 159.93 | 10.37 | 209.92 | 0.3554 | 920.7 | 811.2 | |
| 0.00 | 1.32 | 0.00 | 0.71 | -13.43 | 159.57 | 10.01 | 206.40 | 0.3820 | -732.0 | -559.5 | |
| 0.00 | 1.23 | 0.00 | 0.66 | -13.46 | 159.38 | 9.83 | 205.94 | 0.3811 | -624.0 | -472.5 | |
| 4.22 | 11.61 | 2.22 | 6.11 | -10.95 | 158.98 | 9.43 | 208.20 | 0.3418 | -1051.9 | -798.8 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -13.26 | 159.06 | 9.51 | 205.43 | 0.3760 | 737.0 | 564.1 | |
| 22.16 | 33.59 | 11.78 | 17.85 | -12.62 | 158.67 | 9.11 | 205.25 | 0.3638 | -1098.4 | -596.3 | |
| 0.00 | 2.90 | 0.00 | 1.55 | -13.22 | 158.69 | 9.13 | 204.59 | 0.3729 | -565.0 | -357.2 | |
| 0.70 | 11.61 | 0.37 | 6.13 | -12.01 | 158.58 | 9.03 | 205.78 | 0.3543 | -1010.2 | -797.1 | |
| 5.10 | -26.00 | 2.69 | -26.00 | -11.73 | 158.51 | 8.95 | 205.97 | 0.3496 | -1076.0 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -13.82 | 158.30 | 8.75 | 203.02 | 0.3792 | -761.0 | -579.0 | |
| 0.00 | 1.85 | 0.00 | 1.00 | -15.35 | 157.51 | 7.96 | 199.71 | 0.3975 | -654.0 | -583.2 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -14.56 | 154.34 | 4.78 | 192.61 | 0.3710 | -883.0 | -682.9 | |
| 0.00 | 0.70 | 0.00 | 0.39 | -20.22 | 146.84 | -2.72 | 174.36 | 0.4551 | -630.0 | -538.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
