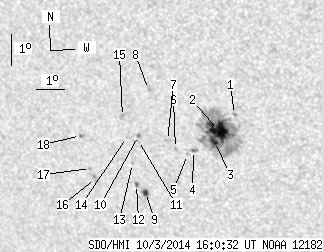

SDO HMI 2014-10-03 16:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.95 | 172.86 | 18.69 | 104.59 | -13.15 | 120.42 | -29.14 | 124.33 | 0.5762 | 364.4 | 242.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-03 16:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.41 | 0.00 | 0.84 | -12.40 | 121.59 | -27.96 | 124.30 | 0.5565 | -157.0 | -41.2 | |
| 21.89 | 142.71 | 13.15 | 85.80 | -12.94 | 120.97 | -28.59 | 124.52 | 0.5682 | 1128.2 | 373.4 | |
| 5.28 | -2.00 | 3.18 | -2.00 | -13.30 | 120.78 | -28.78 | 124.87 | 0.5732 | 749.5 | 999999 | |
| 0.53 | 2.37 | 0.32 | 1.45 | -13.63 | 119.99 | -29.57 | 124.63 | 0.5850 | 569.7 | 463.9 | |
| 0.00 | 0.97 | 0.00 | 0.59 | -13.78 | 119.76 | -29.80 | 124.63 | 0.5888 | 550.0 | 411.5 | |
| 0.00 | 1.14 | 0.00 | 0.70 | -13.61 | 119.35 | -30.20 | 124.03 | 0.5922 | 346.0 | 246.6 | |
| 0.00 | 2.64 | 0.00 | 1.62 | -13.37 | 119.10 | -30.46 | 123.47 | 0.5934 | -599.0 | -407.4 | |
| 0.00 | 1.49 | 0.00 | 0.91 | -11.78 | 118.64 | -30.92 | 120.75 | 0.5875 | 719.0 | 641.8 | |
| 2.20 | 3.78 | 1.38 | 2.38 | -15.10 | 118.04 | -31.52 | 124.99 | 0.6183 | -736.0 | -506.6 | |
| 0.00 | 1.58 | 0.00 | 0.98 | -13.27 | 118.07 | -31.49 | 122.46 | 0.6047 | -829.0 | -775.5 | |
| 0.00 | 1.58 | 0.00 | 0.98 | -13.43 | 118.05 | -31.51 | 122.67 | 0.6061 | -479.0 | -475.4 | |
| 0.70 | 1.93 | 0.44 | 1.22 | -14.86 | 117.75 | -31.81 | 124.42 | 0.6198 | -607.6 | -564.4 | |
| 0.00 | 0.88 | 0.00 | 0.55 | -14.19 | 117.71 | -31.84 | 123.46 | 0.6154 | 577.0 | 431.7 | |
| 0.00 | 0.70 | 0.00 | 0.44 | -13.36 | 117.62 | -31.93 | 122.23 | 0.6106 | -642.0 | -488.5 | |
| 0.00 | 3.08 | 0.00 | 1.91 | -12.70 | 117.57 | -31.98 | 121.24 | 0.6066 | -869.0 | -651.1 | |
| 0.00 | 3.17 | 0.00 | 2.03 | -14.76 | 116.25 | -33.30 | 123.08 | 0.6360 | -825.0 | -656.3 | |
| 0.00 | 1.41 | 0.00 | 0.90 | -14.45 | 116.12 | -33.43 | 122.56 | 0.6353 | -658.0 | -573.6 | |
| 0.35 | 2.02 | 0.22 | 1.29 | -13.41 | 115.92 | -33.63 | 120.97 | 0.6306 | -770.0 | -684.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
