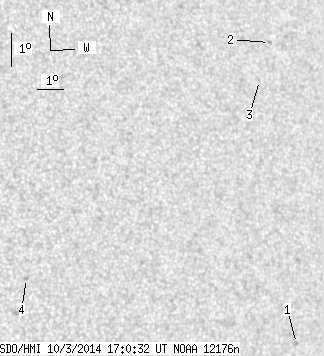

SDO HMI 2014-10-03 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.08 | 0.00 | 3.93 | 10.28 | 189.19 | 40.18 | 278.04 | 0.6432 | -261.0 | -192.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-03 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.85 | 0.00 | 1.24 | 6.01 | 191.89 | 42.88 | 271.71 | 0.6794 | -641.0 | -467.3 | |
| 0.00 | 1.41 | 0.00 | 0.96 | 15.09 | 192.36 | 43.35 | 285.03 | 0.6886 | -562.0 | -512.0 | |
| 0.00 | 0.97 | 0.00 | 0.65 | 13.98 | 191.66 | 42.66 | 283.51 | 0.6786 | -515.0 | -425.5 | |
| 0.00 | 1.85 | 0.00 | 1.08 | 8.68 | 181.78 | 32.77 | 275.81 | 0.5400 | 674.0 | 545.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
