SDO HMI 2014-10-03 18:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 67.09 | 151.48 | 35.87 | 81.19 | -12.36 | 160.38 | 11.93 | 211.90 | 0.3833 | 18.2 | -27.2 | |
|
previous
or next observation for the same group /

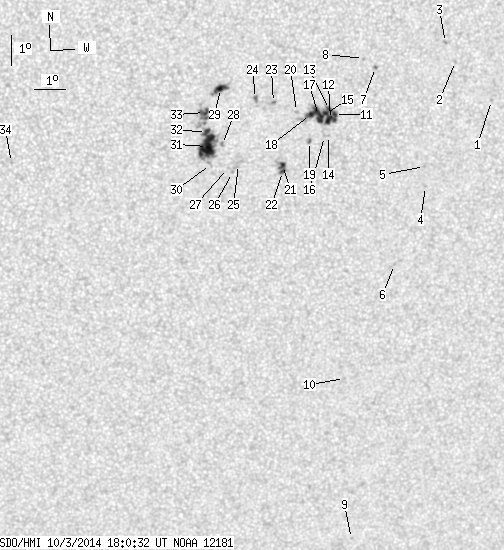

back to the solar disc SDO HMI 2014-10-03 18:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.63 | -11.56 | 167.51 | 19.06 | 226.33 | 0.4441 | 671.0 | 520.8 | |
| 0.00 | 1.49 | 0.00 | 0.81 | -10.28 | 166.27 | 17.82 | 226.58 | 0.4163 | 768.0 | 574.2 | |
| 0.00 | 1.58 | 0.00 | 0.86 | -9.68 | 165.92 | 17.47 | 227.09 | 0.4057 | 848.0 | 657.8 | |
| 0.00 | 1.23 | 0.00 | 0.68 | -14.22 | 165.57 | 17.12 | 219.16 | 0.4537 | 623.0 | 466.8 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -13.57 | 165.49 | 17.04 | 219.96 | 0.4453 | 772.0 | 689.3 | |
| 0.00 | 0.79 | 0.00 | 0.45 | -16.71 | 164.77 | 16.32 | 214.52 | 0.4768 | 748.0 | 636.8 | |
| 0.00 | 1.41 | 0.00 | 0.76 | -10.38 | 163.73 | 15.28 | 221.99 | 0.3892 | -951.0 | -770.5 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -10.09 | 163.34 | 14.89 | 221.76 | 0.3814 | -723.0 | -631.9 | |
| 0.00 | 0.53 | 0.00 | 0.32 | -26.00 | 164.37 | 15.92 | 204.75 | 0.5911 | 620.0 | 538.3 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -20.44 | 163.47 | 15.02 | 208.31 | 0.5142 | 687.0 | 485.0 | |
| 2.29 | 42.11 | 1.23 | 22.64 | -11.82 | 162.51 | 14.06 | 217.25 | 0.3944 | 880.6 | 721.0 | |
| 6.24 | -11.00 | 3.36 | -11.00 | -11.98 | 162.39 | 13.94 | 216.78 | 0.3952 | 996.1 | 999999 | |
| 2.02 | -11.00 | 1.09 | -11.00 | -11.66 | 162.34 | 13.89 | 217.18 | 0.3907 | 989.0 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.38 | -12.48 | 162.35 | 13.90 | 215.94 | 0.4014 | 570.0 | 501.8 | |
| 2.64 | -11.00 | 1.42 | -11.00 | -11.78 | 162.22 | 13.77 | 216.75 | 0.3911 | 1252.1 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -12.51 | 162.23 | 13.78 | 215.65 | 0.4006 | 350.0 | 311.1 | |
| 8.97 | -11.00 | 4.82 | -11.00 | -11.84 | 162.01 | 13.55 | 216.22 | 0.3898 | 1207.8 | 999999 | |
| 3.78 | -11.00 | 2.03 | -11.00 | -11.80 | 161.75 | 13.30 | 215.77 | 0.3869 | 1115.4 | 999999 | |
| 0.44 | 2.02 | 0.24 | 1.09 | -12.66 | 161.76 | 13.31 | 214.51 | 0.3982 | 916.0 | 774.9 | |
| 0.00 | 1.76 | 0.00 | 0.94 | -11.69 | 161.31 | 12.85 | 215.01 | 0.3813 | 372.0 | 381.4 | |
| 2.02 | 8.88 | 1.09 | 4.80 | -13.40 | 160.95 | 12.50 | 211.82 | 0.4010 | 987.4 | 673.5 | |
| 1.32 | -21.00 | 0.71 | -21.00 | -13.59 | 160.96 | 12.51 | 211.58 | 0.4036 | 848.7 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.75 | -11.39 | 160.57 | 12.12 | 213.90 | 0.3706 | -569.0 | -425.6 | |
| 0.62 | 2.81 | 0.33 | 1.50 | -11.25 | 160.00 | 11.55 | 212.85 | 0.3636 | 984.0 | 747.4 | |
| 0.00 | 4.75 | 0.00 | 2.55 | -13.33 | 159.56 | 11.11 | 208.96 | 0.3888 | 51.0 | 72.4 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -13.58 | 159.38 | 10.93 | 208.26 | 0.3909 | -892.0 | -743.9 | |
| 0.00 | 0.35 | 0.00 | 0.19 | -13.45 | 159.22 | 10.77 | 208.07 | 0.3879 | -460.0 | -336.0 | |
| 0.00 | 2.02 | 0.00 | 1.08 | -12.68 | 159.03 | 10.58 | 208.62 | 0.3755 | -788.0 | -581.6 | |
| 5.89 | 10.29 | 3.11 | 5.44 | -10.91 | 158.90 | 10.45 | 210.79 | 0.3494 | -1030.5 | -721.3 | |
| 0.00 | 2.64 | 0.00 | 1.41 | -13.31 | 158.68 | 10.23 | 207.03 | 0.3818 | -582.0 | -412.9 | |
| 24.44 | 57.59 | 13.04 | 30.66 | -12.73 | 158.56 | 10.11 | 207.48 | 0.3727 | -1084.8 | -735.9 | |
| 2.90 | -31.00 | 1.54 | -31.00 | -12.29 | 158.52 | 10.06 | 207.94 | 0.3660 | -1142.1 | 999999 | |
| 3.52 | -31.00 | 1.86 | -31.00 | -11.65 | 158.43 | 9.98 | 208.58 | 0.3562 | -1126.2 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.65 | -13.14 | 152.50 | 4.04 | 191.50 | 0.3459 | 648.0 | 492.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
