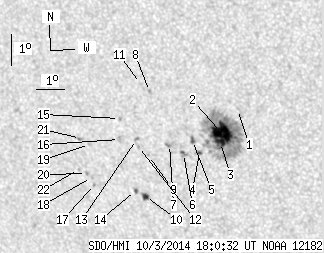

SDO HMI 2014-10-03 18:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.05 | 173.38 | 21.54 | 103.73 | -13.11 | 120.45 | -28.01 | 125.36 | 0.5627 | 322.0 | 242.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-03 18:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.52 | -12.14 | 121.70 | -26.75 | 125.10 | 0.5400 | 562.0 | 305.9 | |
| 24.62 | 137.50 | 14.62 | 81.70 | -12.91 | 121.06 | -27.40 | 125.62 | 0.5539 | 1173.9 | 387.5 | |
| 5.80 | -2.00 | 3.46 | -2.00 | -13.23 | 120.98 | -27.47 | 126.02 | 0.5574 | 840.4 | 999999 | |
| 0.88 | 2.55 | 0.53 | 1.53 | -13.59 | 120.20 | -28.25 | 125.80 | 0.5694 | 374.1 | 323.5 | |
| 1.41 | 2.90 | 0.85 | 1.74 | -13.22 | 120.01 | -28.45 | 125.07 | 0.5687 | 671.6 | 482.5 | |
| 0.00 | 3.52 | 0.00 | 2.13 | -13.65 | 119.63 | -28.82 | 125.35 | 0.5765 | 672.0 | 453.8 | |
| 0.00 | 2.64 | 0.00 | 1.60 | -13.39 | 119.17 | -29.28 | 124.55 | 0.5798 | -316.0 | -481.4 | |
| 0.00 | 1.67 | 0.00 | 1.01 | -11.74 | 118.68 | -29.78 | 121.66 | 0.5734 | 842.0 | 641.5 | |
| 0.00 | 0.97 | 0.00 | 0.59 | -13.79 | 118.37 | -30.08 | 124.40 | 0.5922 | -884.0 | -687.9 | |
| 2.64 | 4.22 | 1.64 | 2.62 | -15.12 | 118.06 | -30.39 | 126.00 | 0.6059 | -763.0 | -574.3 | |
| 0.00 | 1.41 | 0.00 | 0.85 | -11.51 | 118.39 | -30.07 | 121.06 | 0.5752 | 421.0 | 315.1 | |
| 0.00 | 0.88 | 0.00 | 0.54 | -13.52 | 118.05 | -30.40 | 123.74 | 0.5939 | -672.0 | -582.4 | |
| 0.00 | 1.49 | 0.00 | 0.92 | -13.30 | 118.01 | -30.44 | 123.39 | 0.5927 | -888.0 | -739.1 | |
| 0.70 | 1.76 | 0.44 | 1.10 | -14.95 | 117.73 | -30.73 | 125.47 | 0.6084 | -834.8 | -623.3 | |
| 0.00 | 1.58 | 0.00 | 0.97 | -12.67 | 117.49 | -30.96 | 122.02 | 0.5943 | -912.0 | -787.6 | |
| 0.00 | 2.20 | 0.00 | 1.36 | -13.34 | 117.39 | -31.06 | 122.92 | 0.6002 | -531.0 | -533.6 | |
| 0.00 | 1.14 | 0.00 | 0.72 | -14.85 | 116.25 | -32.20 | 124.08 | 0.6242 | -630.0 | -560.8 | |
| 0.00 | 0.44 | 0.00 | 0.28 | -14.63 | 116.17 | -32.28 | 123.72 | 0.6235 | -751.0 | -720.8 | |
| 0.00 | 0.97 | 0.00 | 0.61 | -13.57 | 116.27 | -32.18 | 122.32 | 0.6149 | -777.0 | -573.0 | |
| 0.00 | 1.58 | 0.00 | 1.00 | -14.51 | 116.01 | -32.44 | 123.42 | 0.6245 | -810.0 | -683.8 | |
| 0.00 | 2.02 | 0.00 | 1.27 | -13.40 | 115.97 | -32.48 | 121.84 | 0.6172 | -719.0 | -701.2 | |
| 0.00 | 1.06 | 0.00 | 0.67 | -14.40 | 115.73 | -32.72 | 123.05 | 0.6269 | -584.0 | -480.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
