SDO HMI 2014-10-03 18:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.30 | 19.08 | 6.96 | 17.75 | 13.77 | 90.09 | -58.37 | 77.89 | 0.8464 | 331.9 | 295.4 | |
|
previous
or next observation for the same group /

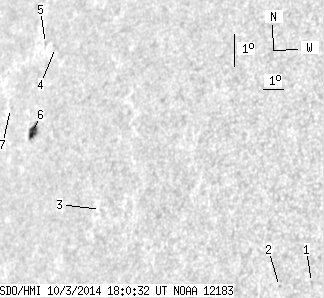

back to the solar disc SDO HMI 2014-10-03 18:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.55 | 10.14 | 103.93 | -44.52 | 82.23 | 0.6990 | -602.0 | -457.1 | |
| 0.00 | 0.88 | 0.00 | 0.62 | 9.91 | 102.58 | -45.87 | 82.58 | 0.7154 | -686.0 | -585.7 | |
| 0.00 | 0.53 | 0.00 | 0.45 | 11.47 | 93.61 | -54.84 | 80.60 | 0.8143 | -478.0 | -414.8 | |
| 0.00 | 3.34 | 0.00 | 3.17 | 16.03 | 89.33 | -59.13 | 75.22 | 0.8552 | 596.0 | 431.0 | |
| 0.00 | 1.06 | 0.00 | 1.02 | 16.09 | 88.68 | -59.78 | 75.17 | 0.8608 | 537.0 | 443.5 | |
| 7.30 | 11.78 | 6.96 | 11.24 | 13.39 | 89.09 | -59.37 | 78.32 | 0.8568 | 645.6 | 438.7 | |
| 0.00 | 0.70 | 0.00 | 0.70 | 13.97 | 87.46 | -60.99 | 77.66 | 0.8708 | 441.0 | 412.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
