SDO HMI 2014-10-03 19:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 64.87 | 425.22 | 32.68 | 214.16 | -1.47 | 154.21 | 6.31 | 217.93 | 0.1793 | 891.6 | 468.3 | |
|
previous
or next observation for the same group /

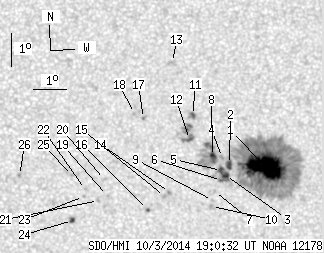

back to the solar disc SDO HMI 2014-10-03 19:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.79 | 343.66 | 24.60 | 173.26 | -1.51 | 154.87 | 6.97 | 220.86 | 0.1862 | 1603.8 | 476.1 | |
| 3.16 | -1.00 | 1.59 | -1.00 | -1.43 | 153.78 | 5.88 | 216.36 | 0.1735 | 1218.4 | 999999 | |
| 2.99 | -1.00 | 1.50 | -1.00 | -1.77 | 153.66 | 5.76 | 214.70 | 0.1770 | 1096.2 | 999999 | |
| 0.00 | 2.11 | 0.00 | 1.06 | -1.22 | 153.57 | 5.67 | 216.10 | 0.1684 | 958.0 | 803.0 | |
| 2.29 | -1.00 | 1.15 | -1.00 | -1.61 | 153.54 | 5.64 | 214.63 | 0.1737 | 1108.2 | 999999 | |
| 0.26 | -1.00 | 0.13 | -1.00 | -1.92 | 153.54 | 5.64 | 213.66 | 0.1780 | 903.7 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -2.25 | 153.33 | 5.43 | 211.68 | 0.1809 | 555.0 | 384.3 | |
| 3.08 | 34.46 | 1.55 | 17.30 | -1.19 | 153.27 | 5.37 | 214.73 | 0.1649 | 1287.5 | 577.6 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -2.52 | 153.27 | 5.37 | 210.63 | 0.1844 | 891.0 | 626.6 | |
| 0.00 | 2.11 | 0.00 | 1.06 | -2.70 | 153.24 | 5.34 | 209.99 | 0.1868 | 726.0 | 577.7 | |
| 1.05 | 3.78 | 0.53 | 1.89 | 0.06 | 152.67 | 4.77 | 216.22 | 0.1413 | 1149.8 | 924.7 | |
| 1.41 | 14.15 | 0.70 | 7.09 | -0.66 | 152.58 | 4.68 | 212.90 | 0.1508 | 1111.9 | 920.5 | |
| 0.00 | 3.96 | 0.00 | 1.97 | 1.66 | 152.07 | 4.17 | 220.29 | 0.1129 | 966.0 | 722.2 | |
| 0.00 | 1.49 | 0.00 | 0.75 | -2.26 | 151.98 | 4.08 | 204.79 | 0.1701 | 1086.0 | 905.1 | |
| 0.00 | 1.93 | 0.00 | 0.97 | -2.38 | 151.83 | 3.92 | 203.70 | 0.1709 | 1055.0 | 802.6 | |
| 0.35 | 1.14 | 0.18 | 0.57 | -2.77 | 151.31 | 3.41 | 200.10 | 0.1739 | -880.0 | -814.4 | |
| 0.00 | 1.23 | 0.00 | 0.61 | -0.02 | 151.19 | 3.29 | 206.55 | 0.1291 | -846.0 | -637.1 | |
| 0.00 | 1.32 | 0.00 | 0.66 | 0.14 | 150.92 | 3.02 | 205.15 | 0.1247 | -914.0 | -757.2 | |
| 0.00 | 1.05 | 0.00 | 0.53 | -2.34 | 150.11 | 2.21 | 193.95 | 0.1607 | -719.0 | -558.9 | |
| 0.00 | 1.58 | 0.00 | 0.79 | -1.85 | 150.02 | 2.12 | 194.14 | 0.1522 | -776.0 | -546.3 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -2.49 | 149.84 | 1.94 | 192.11 | 0.1622 | -1015.0 | -832.5 | |
| 0.00 | 0.97 | 0.00 | 0.48 | -2.15 | 149.45 | 1.55 | 190.09 | 0.1552 | -838.0 | -724.0 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -2.37 | 149.39 | 1.49 | 189.48 | 0.1586 | -823.0 | -609.7 | |
| 1.49 | 2.90 | 0.75 | 1.46 | -3.09 | 149.06 | 1.16 | 186.86 | 0.1703 | -1157.9 | -919.4 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -1.73 | 149.06 | 1.16 | 187.97 | 0.1468 | -865.0 | -730.5 | |
| 0.00 | 1.41 | 0.00 | 0.70 | -1.72 | 147.47 | -0.43 | 177.05 | 0.1456 | -1062.0 | -827.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
