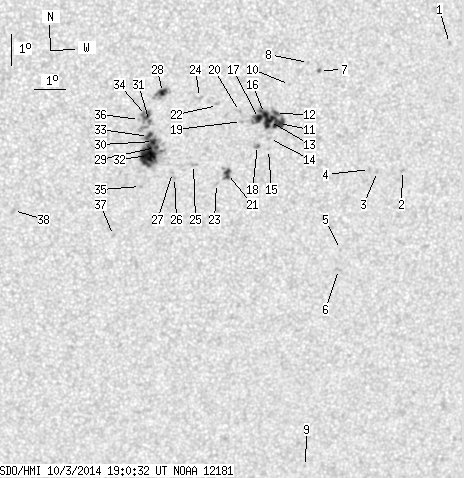

SDO HMI 2014-10-03 19:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 74.29 | 167.66 | 39.84 | 90.13 | -12.43 | 160.35 | 12.45 | 212.88 | 0.3889 | -51.3 | -41.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-03 19:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.32 | 0.00 | 0.73 | -9.68 | 167.88 | 19.97 | 230.93 | 0.4356 | 643.0 | 505.0 | |
| 0.00 | 1.76 | 0.00 | 0.98 | -13.63 | 166.63 | 18.73 | 222.56 | 0.4633 | 703.0 | 600.2 | |
| 0.00 | 1.58 | 0.00 | 0.88 | -13.63 | 165.82 | 17.92 | 221.30 | 0.4549 | 750.0 | 526.4 | |
| 0.00 | 1.41 | 0.00 | 0.78 | -13.56 | 165.55 | 17.65 | 220.98 | 0.4514 | 757.0 | 612.4 | |
| 0.00 | 0.79 | 0.00 | 0.44 | -16.11 | 164.82 | 16.92 | 216.26 | 0.4747 | 607.0 | 534.7 | |
| 0.00 | 2.55 | 0.00 | 1.44 | -16.76 | 164.81 | 16.91 | 215.42 | 0.4826 | 699.0 | 546.9 | |
| 0.44 | 1.41 | 0.24 | 0.76 | -10.36 | 163.75 | 15.85 | 223.07 | 0.3951 | -885.2 | -759.5 | |
| 0.00 | 1.05 | 0.00 | 0.57 | -10.10 | 163.39 | 15.49 | 222.87 | 0.3881 | -759.0 | -598.4 | |
| 0.00 | 0.62 | 0.00 | 0.37 | -23.35 | 164.43 | 16.53 | 207.83 | 0.5617 | 705.0 | 578.7 | |
| 0.00 | 0.62 | 0.00 | 0.33 | -10.77 | 162.82 | 14.92 | 220.64 | 0.3901 | -730.0 | -594.9 | |
| 7.65 | 44.40 | 4.13 | 23.95 | -11.99 | 162.54 | 14.64 | 218.11 | 0.4022 | 955.8 | 717.3 | |
| 1.93 | -11.00 | 1.04 | -11.00 | -11.67 | 162.43 | 14.53 | 218.40 | 0.3971 | 920.8 | 999999 | |
| 8.53 | -11.00 | 4.60 | -11.00 | -11.92 | 162.25 | 14.35 | 217.67 | 0.3985 | 1127.3 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.67 | -12.46 | 162.28 | 14.38 | 216.89 | 0.4056 | 835.0 | 568.1 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -12.81 | 162.27 | 14.37 | 216.35 | 0.4099 | 713.0 | 495.4 | |
| 4.48 | -11.00 | 2.41 | -11.00 | -11.66 | 162.08 | 14.18 | 217.74 | 0.3936 | 1148.4 | 999999 | |
| 5.10 | -11.00 | 2.75 | -11.00 | -11.82 | 161.90 | 14.00 | 217.14 | 0.3937 | 1103.5 | 999999 | |
| 0.35 | 2.99 | 0.19 | 1.62 | -12.67 | 161.91 | 14.01 | 215.87 | 0.4048 | 952.0 | 828.5 | |
| 0.00 | 1.67 | 0.00 | 0.90 | -11.89 | 161.36 | 13.46 | 215.96 | 0.3897 | 159.0 | 214.1 | |
| 0.00 | 1.58 | 0.00 | 0.85 | -11.58 | 161.28 | 13.38 | 216.29 | 0.3848 | 852.0 | 583.4 | |
| 3.87 | 7.91 | 2.10 | 4.29 | -13.54 | 161.01 | 13.11 | 212.86 | 0.4080 | 963.6 | 708.8 | |
| 0.00 | 0.79 | 0.00 | 0.42 | -11.37 | 160.58 | 12.68 | 215.15 | 0.3755 | -541.0 | -512.9 | |
| 0.00 | 1.05 | 0.00 | 0.57 | -13.85 | 160.68 | 12.78 | 211.78 | 0.4094 | 594.0 | 592.2 | |
| 0.00 | 2.99 | 0.00 | 1.59 | -11.10 | 160.01 | 12.11 | 214.32 | 0.3666 | 341.0 | 546.6 | |
| 0.00 | 3.34 | 0.00 | 1.80 | -13.22 | 159.92 | 12.02 | 211.06 | 0.3946 | 576.0 | 408.8 | |
| 0.00 | 1.05 | 0.00 | 0.57 | -13.62 | 159.34 | 11.44 | 209.31 | 0.3954 | -543.0 | -547.6 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -13.46 | 159.27 | 11.37 | 209.36 | 0.3926 | -703.0 | -613.0 | |
| 3.87 | 11.52 | 2.05 | 6.10 | -10.91 | 158.85 | 10.95 | 211.97 | 0.3538 | -1096.2 | -812.2 | |
| 2.20 | 48.70 | 1.17 | 26.03 | -12.65 | 158.70 | 10.80 | 209.16 | 0.3768 | -964.4 | -570.3 | |
| 3.87 | -29.00 | 2.06 | -29.00 | -12.46 | 158.63 | 10.73 | 209.25 | 0.3735 | -1147.1 | 999999 | |
| 0.62 | 16.88 | 0.33 | 8.96 | -11.82 | 158.48 | 10.58 | 209.78 | 0.3633 | -952.9 | -866.3 | |
| 25.14 | -29.00 | 13.45 | -29.00 | -12.90 | 158.49 | 10.59 | 208.36 | 0.3787 | -983.4 | 999999 | |
| 3.16 | -29.00 | 1.69 | -29.00 | -12.29 | 158.46 | 10.56 | 209.10 | 0.3699 | -1107.4 | 999999 | |
| 3.08 | -31.00 | 1.63 | -31.00 | -11.63 | 158.38 | 10.48 | 209.81 | 0.3598 | -1104.2 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -13.88 | 158.28 | 10.38 | 206.69 | 0.3912 | -724.0 | -628.1 | |
| 0.00 | 1.32 | 0.00 | 0.70 | -11.75 | 158.16 | 10.26 | 209.14 | 0.3598 | -898.0 | -758.0 | |
| 0.00 | 1.76 | 0.00 | 0.95 | -15.44 | 157.50 | 9.60 | 203.28 | 0.4085 | -752.0 | -553.5 | |
| 0.00 | 2.64 | 0.00 | 1.41 | -14.58 | 154.33 | 6.43 | 196.74 | 0.3781 | -711.0 | -598.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
