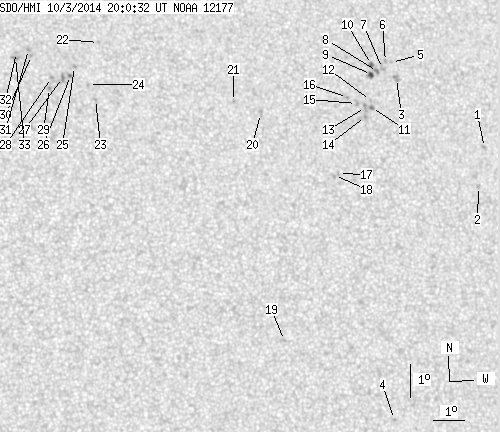

SDO HMI 2014-10-03 20:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.54 | 58.25 | 1.38 | 30.99 | 12.18 | 167.55 | 20.20 | 288.63 | 0.3572 | 70.1 | -15.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-03 20:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.29 | 0.00 | 1.27 | 10.54 | 174.43 | 27.08 | 280.28 | 0.4568 | -783.0 | -545.2 | |
| 0.00 | 2.11 | 0.00 | 1.17 | 9.38 | 174.12 | 26.77 | 277.79 | 0.4504 | -769.0 | -626.5 | |
| 0.00 | 3.87 | 0.00 | 2.11 | 12.76 | 171.66 | 24.31 | 286.29 | 0.4201 | -750.0 | -646.0 | |
| 0.00 | 1.14 | 0.00 | 0.62 | 2.54 | 170.97 | 23.62 | 261.32 | 0.4067 | 703.0 | 602.3 | |
| 0.00 | 0.88 | 0.00 | 0.48 | 13.25 | 171.54 | 24.20 | 287.49 | 0.4201 | -684.0 | -535.8 | |
| 0.00 | 1.49 | 0.00 | 0.81 | 13.29 | 171.35 | 24.00 | 287.69 | 0.4172 | -624.0 | -535.3 | |
| 0.00 | 2.37 | 0.00 | 1.29 | 13.09 | 171.22 | 23.88 | 287.27 | 0.4146 | -801.0 | -638.6 | |
| 0.00 | 2.11 | 0.00 | 1.15 | 13.00 | 171.05 | 23.70 | 287.17 | 0.4116 | -966.0 | -832.2 | |
| 1.49 | 3.08 | 0.81 | 1.67 | 12.92 | 170.84 | 23.49 | 287.09 | 0.4082 | -1092.1 | -870.9 | |
| 0.70 | 1.93 | 0.38 | 1.05 | 13.22 | 170.87 | 23.52 | 287.79 | 0.4097 | -1017.0 | -794.5 | |
| 0.35 | 2.02 | 0.19 | 1.09 | 11.93 | 170.74 | 23.39 | 284.74 | 0.4034 | -896.5 | -741.6 | |
| 0.00 | 1.05 | 0.00 | 0.57 | 12.14 | 170.73 | 23.38 | 285.26 | 0.4038 | -631.0 | -525.6 | |
| 0.00 | 2.81 | 0.00 | 1.52 | 11.94 | 170.54 | 23.19 | 284.85 | 0.4003 | -845.0 | -779.9 | |
| 0.00 | 1.14 | 0.00 | 0.62 | 11.67 | 170.52 | 23.17 | 284.20 | 0.3991 | -877.0 | -762.2 | |
| 0.00 | 2.64 | 0.00 | 1.42 | 12.07 | 170.25 | 22.91 | 285.32 | 0.3963 | -617.0 | -603.3 | |
| 0.00 | 0.88 | 0.00 | 0.47 | 12.27 | 169.97 | 22.62 | 285.95 | 0.3926 | -798.0 | -630.3 | |
| 0.00 | 1.23 | 0.00 | 0.66 | 10.00 | 169.49 | 22.14 | 280.33 | 0.3789 | 802.0 | 690.1 | |
| 0.00 | 1.23 | 0.00 | 0.66 | 9.94 | 169.35 | 22.00 | 280.23 | 0.3766 | 841.0 | 637.0 | |
| 0.00 | 1.05 | 0.00 | 0.56 | 5.07 | 167.47 | 20.13 | 266.71 | 0.3448 | 713.0 | 648.7 | |
| 0.00 | 2.99 | 0.00 | 1.58 | 11.91 | 167.08 | 19.73 | 286.70 | 0.3464 | 362.0 | 435.0 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 12.30 | 166.23 | 18.88 | 288.43 | 0.3348 | 803.0 | 672.0 | |
| 0.00 | 1.14 | 0.00 | 0.59 | 14.22 | 162.02 | 14.68 | 299.04 | 0.2821 | 792.0 | 579.8 | |
| 0.00 | 0.70 | 0.00 | 0.36 | 12.51 | 161.82 | 14.47 | 293.59 | 0.2674 | 822.0 | 571.6 | |
| 0.00 | 1.23 | 0.00 | 0.63 | 12.97 | 161.62 | 14.28 | 295.45 | 0.2673 | 776.0 | 631.9 | |
| 0.00 | 1.58 | 0.00 | 0.81 | 13.52 | 161.21 | 13.87 | 297.98 | 0.2650 | 834.0 | 692.2 | |
| 0.00 | 1.67 | 0.00 | 0.86 | 13.25 | 161.07 | 13.72 | 297.28 | 0.2610 | 886.0 | 791.8 | |
| 0.00 | 3.25 | 0.00 | 1.67 | 13.20 | 160.81 | 13.47 | 297.51 | 0.2568 | 1056.0 | 835.9 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 13.21 | 160.47 | 13.12 | 298.12 | 0.2516 | 999.0 | 685.5 | |
| 0.00 | 1.58 | 0.00 | 0.81 | 12.88 | 160.38 | 13.04 | 297.05 | 0.2480 | 993.0 | 765.3 | |
| 0.00 | 1.05 | 0.00 | 0.54 | 13.89 | 159.87 | 12.52 | 301.61 | 0.2483 | 921.0 | 725.4 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 14.07 | 159.79 | 12.44 | 302.42 | 0.2486 | 765.0 | 744.4 | |
| 0.00 | 1.14 | 0.00 | 0.58 | 13.99 | 159.40 | 12.06 | 302.91 | 0.2425 | 757.0 | 641.8 | |
| 0.00 | 3.52 | 0.00 | 1.79 | 13.84 | 159.36 | 12.02 | 302.45 | 0.2406 | 1014.0 | 828.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
