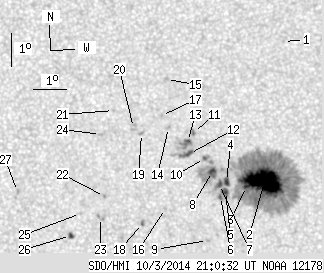

SDO HMI 2014-10-03 21:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 70.33 | 427.29 | 35.52 | 215.70 | -1.41 | 154.24 | 7.44 | 222.80 | 0.1911 | 954.1 | 419.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-03 21:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.70 | 0.00 | 0.35 | 2.71 | 155.50 | 8.70 | 246.26 | 0.1659 | 720.0 | 581.0 | |
| 53.02 | 346.41 | 26.80 | 175.09 | -1.50 | 154.91 | 8.12 | 225.29 | 0.1995 | 1551.3 | 450.9 | |
| 0.26 | -2.00 | 0.13 | -2.00 | -1.64 | 154.37 | 7.57 | 222.78 | 0.1948 | 1187.0 | 999999 | |
| 2.99 | -2.00 | 1.51 | -2.00 | -1.48 | 153.76 | 6.97 | 220.95 | 0.1858 | 1198.9 | 999999 | |
| 2.90 | -2.00 | 1.46 | -2.00 | -1.78 | 153.73 | 6.94 | 219.79 | 0.1895 | 1084.0 | 999999 | |
| 0.70 | -2.00 | 0.35 | -2.00 | -1.93 | 153.58 | 6.79 | 218.67 | 0.1898 | 712.1 | 999999 | |
| 1.76 | -2.00 | 0.89 | -2.00 | -1.57 | 153.55 | 6.75 | 219.77 | 0.1846 | 1113.4 | 999999 | |
| 3.25 | 25.58 | 1.64 | 12.87 | -1.17 | 153.34 | 6.54 | 220.27 | 0.1770 | 1256.6 | 521.7 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -3.26 | 153.19 | 6.40 | 213.12 | 0.2046 | 830.0 | 642.6 | |
| 0.70 | 5.36 | 0.35 | 2.70 | -0.78 | 153.10 | 6.30 | 220.69 | 0.1691 | 1012.0 | 857.2 | |
| 0.00 | 2.55 | 0.00 | 1.28 | 0.01 | 152.76 | 5.97 | 222.37 | 0.1550 | 1135.0 | 903.1 | |
| 1.85 | 8.53 | 0.93 | 4.28 | -0.62 | 152.64 | 5.85 | 219.18 | 0.1620 | 1145.0 | 700.2 | |
| 1.23 | 9.85 | 0.62 | 4.94 | -0.25 | 152.58 | 5.79 | 220.34 | 0.1565 | 1096.9 | 754.3 | |
| 0.00 | 1.41 | 0.00 | 0.70 | 0.17 | 152.01 | 5.22 | 219.22 | 0.1445 | 832.0 | 676.0 | |
| 0.00 | 2.46 | 0.00 | 1.23 | 1.62 | 151.96 | 5.16 | 226.18 | 0.1252 | 1001.0 | 817.9 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -2.27 | 151.92 | 5.13 | 210.15 | 0.1786 | 929.0 | 732.9 | |
| 0.00 | 0.97 | 0.00 | 0.48 | 0.54 | 151.80 | 5.01 | 219.70 | 0.1373 | 817.0 | 678.1 | |
| 0.00 | 2.55 | 0.00 | 1.28 | -2.72 | 151.23 | 4.44 | 205.55 | 0.1799 | -807.0 | -667.1 | |
| 0.00 | 2.20 | 0.00 | 1.10 | 0.00 | 151.20 | 4.40 | 213.84 | 0.1385 | -795.0 | -625.5 | |
| 0.00 | 3.96 | 0.00 | 1.98 | 0.19 | 150.96 | 4.16 | 213.10 | 0.1336 | -430.0 | -700.3 | |
| 0.00 | 1.14 | 0.00 | 0.57 | 0.70 | 150.36 | 3.56 | 211.24 | 0.1204 | -793.0 | -558.2 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -1.89 | 150.09 | 3.29 | 201.27 | 0.1590 | -908.0 | -658.6 | |
| 0.00 | 2.90 | 0.00 | 1.46 | -2.53 | 149.97 | 3.17 | 199.24 | 0.1686 | -833.0 | -781.5 | |
| 0.00 | 1.49 | 0.00 | 0.75 | -0.02 | 149.97 | 3.17 | 205.70 | 0.1282 | -733.0 | -635.1 | |
| 0.00 | 0.79 | 0.00 | 0.40 | -2.40 | 149.37 | 2.57 | 196.00 | 0.1634 | -678.0 | -306.8 | |
| 1.67 | 3.17 | 0.84 | 1.59 | -3.07 | 149.07 | 2.27 | 193.27 | 0.1732 | -998.6 | -750.0 | |
| 0.00 | 1.93 | 0.00 | 0.97 | -1.73 | 147.48 | 0.68 | 184.69 | 0.1459 | -861.0 | -726.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
