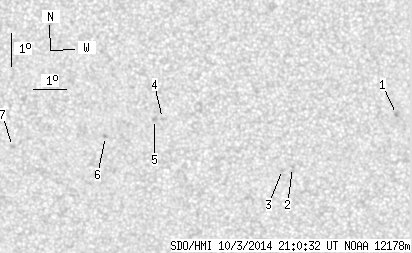

SDO HMI 2014-10-03 21:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.97 | 0.00 | 6.07 | -4.58 | 142.52 | -4.27 | 160.87 | 0.2178 | -216.0 | -180.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-03 21:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.55 | 0.00 | 1.29 | -3.98 | 148.38 | 1.58 | 188.53 | 0.1864 | 893.0 | 766.2 | |
| 0.00 | 0.79 | 0.00 | 0.40 | -5.60 | 145.25 | -1.55 | 172.74 | 0.2139 | 799.0 | 631.6 | |
| 0.00 | 1.41 | 0.00 | 0.71 | -5.66 | 144.94 | -1.85 | 171.39 | 0.2156 | 628.0 | 553.8 | |
| 0.00 | 1.41 | 0.00 | 0.71 | -4.12 | 141.34 | -5.46 | 152.90 | 0.2093 | -879.0 | -655.9 | |
| 0.00 | 2.73 | 0.00 | 1.38 | -4.15 | 141.09 | -5.70 | 151.96 | 0.2117 | -1028.0 | -763.9 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -4.69 | 139.61 | -7.19 | 147.38 | 0.2324 | -925.0 | -787.8 | |
| 0.00 | 2.02 | 0.00 | 1.04 | -5.04 | 136.77 | -10.02 | 139.08 | 0.2659 | -1000.0 | -752.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
