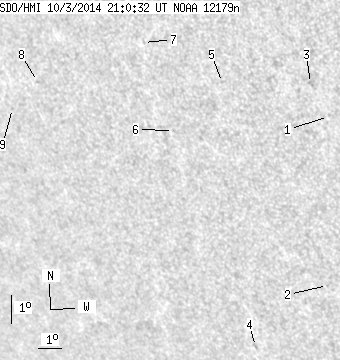

SDO HMI 2014-10-03 21:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.95 | 0.00 | 7.21 | -18.81 | 107.12 | -39.68 | 123.85 | 0.7292 | 357.6 | 289.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-03 21:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.44 | 0.00 | 0.29 | -16.88 | 112.68 | -34.12 | 125.26 | 0.6596 | 618.0 | 605.0 | |
| 0.00 | 0.79 | 0.00 | 0.56 | -22.60 | 111.19 | -35.61 | 131.05 | 0.7150 | 615.0 | 522.9 | |
| 0.00 | 2.11 | 0.00 | 1.38 | -15.84 | 112.21 | -34.59 | 123.55 | 0.6576 | 774.0 | 628.1 | |
| 0.00 | 2.02 | 0.00 | 1.55 | -24.99 | 107.39 | -39.40 | 130.99 | 0.7646 | 618.0 | 464.1 | |
| 0.00 | 1.06 | 0.00 | 0.73 | -16.05 | 108.75 | -38.05 | 121.40 | 0.6963 | 521.0 | 457.2 | |
| 0.00 | 0.88 | 0.00 | 0.64 | -17.79 | 106.32 | -40.48 | 122.04 | 0.7315 | 507.0 | 421.5 | |
| 0.00 | 0.62 | 0.00 | 0.44 | -14.99 | 105.80 | -41.00 | 118.26 | 0.7218 | 535.0 | 439.7 | |
| 0.00 | 1.06 | 0.00 | 0.83 | -16.65 | 100.77 | -46.03 | 117.64 | 0.7806 | -624.0 | -580.4 | |
| 0.00 | 0.97 | 0.00 | 0.79 | -17.66 | 99.28 | -47.51 | 118.11 | 0.7989 | -346.0 | -351.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
