SDO HMI 2014-10-03 21:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.64 | 198.60 | 29.79 | 116.79 | -13.12 | 120.66 | -26.14 | 127.26 | 0.5408 | 526.3 | 240.2 | |
|
previous
or next observation for the same group /

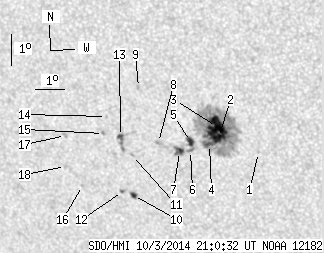

back to the solar disc SDO HMI 2014-10-03 21:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.71 | -13.57 | 122.61 | -24.18 | 130.07 | 0.5224 | 712.0 | 530.1 | |
| 9.50 | 153.33 | 5.56 | 89.58 | -13.15 | 121.30 | -25.50 | 127.96 | 0.5338 | 966.8 | 368.3 | |
| 24.00 | -2.00 | 14.01 | -2.00 | -12.81 | 121.27 | -25.53 | 127.40 | 0.5310 | 1234.2 | 999999 | |
| 3.25 | -2.00 | 1.91 | -2.00 | -13.39 | 120.96 | -25.83 | 127.96 | 0.5397 | 623.8 | 999999 | |
| 4.22 | 6.07 | 2.49 | 3.58 | -13.33 | 120.32 | -26.48 | 127.19 | 0.5467 | 795.0 | 517.5 | |
| 0.00 | 2.64 | 0.00 | 1.56 | -13.62 | 120.28 | -26.51 | 127.58 | 0.5496 | 744.0 | 536.2 | |
| 4.48 | 9.23 | 2.66 | 5.48 | -13.67 | 119.90 | -26.90 | 127.26 | 0.5545 | 689.5 | 283.3 | |
| 0.00 | 2.02 | 0.00 | 1.21 | -13.42 | 119.20 | -27.60 | 126.19 | 0.5605 | -338.0 | -411.5 | |
| 0.00 | 1.67 | 0.00 | 0.99 | -11.71 | 118.71 | -28.09 | 123.13 | 0.5526 | 549.0 | 542.1 | |
| 2.46 | 4.04 | 1.50 | 2.47 | -15.18 | 118.07 | -28.72 | 127.62 | 0.5877 | -811.0 | -594.4 | |
| 0.00 | 1.14 | 0.00 | 0.69 | -13.89 | 118.22 | -28.57 | 125.93 | 0.5755 | -719.0 | -553.1 | |
| 0.62 | 1.93 | 0.38 | 1.19 | -15.08 | 117.70 | -29.10 | 127.12 | 0.5910 | -777.7 | -623.1 | |
| 2.11 | 8.00 | 1.28 | 4.84 | -13.31 | 117.88 | -28.91 | 124.76 | 0.5749 | -928.8 | -755.7 | |
| 0.00 | 0.97 | 0.00 | 0.58 | -12.69 | 117.47 | -29.33 | 123.48 | 0.5751 | -842.0 | -706.0 | |
| 0.00 | 1.32 | 0.00 | 0.80 | -13.24 | 117.29 | -29.51 | 124.13 | 0.5814 | -866.0 | -695.8 | |
| 0.00 | 1.14 | 0.00 | 0.71 | -14.97 | 116.28 | -30.51 | 125.68 | 0.6061 | -430.0 | -417.5 | |
| 0.00 | 2.20 | 0.00 | 1.36 | -13.39 | 115.91 | -30.88 | 123.14 | 0.5986 | -895.0 | -612.8 | |
| 0.00 | 1.67 | 0.00 | 1.04 | -14.39 | 115.76 | -31.03 | 124.42 | 0.6076 | -638.0 | -529.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
