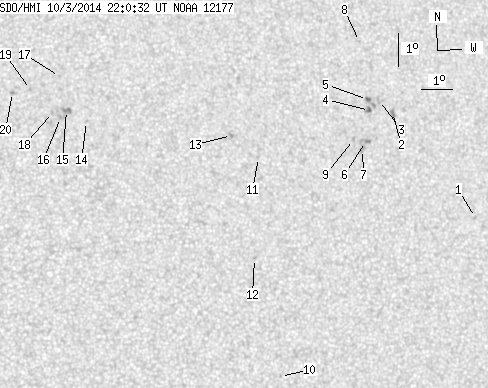

SDO HMI 2014-10-03 22:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.67 | 46.17 | 0.91 | 24.74 | 12.51 | 167.74 | 21.49 | 288.18 | 0.3771 | 44.1 | -136.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-03 22:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.32 | 0.00 | 0.74 | 9.48 | 174.16 | 27.92 | 277.82 | 0.4680 | -725.0 | -593.5 | |
| 0.00 | 3.52 | 0.00 | 1.93 | 12.78 | 171.65 | 25.40 | 285.81 | 0.4366 | -878.0 | -701.7 | |
| 0.00 | 4.13 | 0.00 | 2.27 | 13.16 | 171.25 | 25.00 | 286.86 | 0.4319 | -700.0 | -531.0 | |
| 0.88 | 3.52 | 0.48 | 1.92 | 12.87 | 170.88 | 24.63 | 286.39 | 0.4253 | -1016.2 | -845.9 | |
| 0.79 | 5.63 | 0.43 | 3.08 | 13.21 | 170.84 | 24.60 | 287.18 | 0.4260 | -984.6 | -759.6 | |
| 0.00 | 4.31 | 0.00 | 2.35 | 11.95 | 170.65 | 24.40 | 284.33 | 0.4190 | -807.0 | -723.8 | |
| 0.00 | 3.43 | 0.00 | 1.87 | 11.71 | 170.52 | 24.28 | 283.83 | 0.4164 | -763.0 | -672.6 | |
| 0.00 | 0.62 | 0.00 | 0.34 | 14.97 | 170.78 | 24.53 | 291.20 | 0.4321 | -669.0 | -536.4 | |
| 0.00 | 1.41 | 0.00 | 0.76 | 12.03 | 170.25 | 24.01 | 284.69 | 0.4131 | -893.0 | -762.8 | |
| 0.00 | 0.79 | 0.00 | 0.42 | 5.03 | 167.40 | 21.16 | 266.87 | 0.3616 | 813.0 | 638.0 | |
| 0.00 | 1.14 | 0.00 | 0.61 | 11.62 | 167.06 | 20.82 | 285.26 | 0.3624 | 620.0 | 383.5 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 8.60 | 166.73 | 20.48 | 276.94 | 0.3501 | 796.0 | 595.9 | |
| 0.00 | 2.02 | 0.00 | 1.07 | 12.32 | 166.24 | 19.99 | 287.68 | 0.3521 | 890.0 | 729.7 | |
| 0.00 | 1.23 | 0.00 | 0.64 | 12.91 | 161.60 | 15.36 | 293.81 | 0.2834 | 744.0 | 568.6 | |
| 0.00 | 5.36 | 0.00 | 2.76 | 13.26 | 160.98 | 14.74 | 295.79 | 0.2763 | 1018.0 | 830.3 | |
| 0.00 | 1.41 | 0.00 | 0.72 | 13.05 | 160.78 | 14.54 | 295.38 | 0.2719 | 809.0 | 653.2 | |
| 0.00 | 0.88 | 0.00 | 0.45 | 14.29 | 160.83 | 14.59 | 299.39 | 0.2813 | 719.0 | 573.1 | |
| 0.00 | 1.41 | 0.00 | 0.72 | 13.21 | 160.54 | 14.29 | 296.27 | 0.2692 | 922.0 | 690.4 | |
| 0.00 | 1.14 | 0.00 | 0.59 | 13.92 | 159.88 | 13.64 | 299.73 | 0.2647 | 934.0 | 762.2 | |
| 0.00 | 1.76 | 0.00 | 0.90 | 13.85 | 159.30 | 13.06 | 300.47 | 0.2557 | 1003.0 | 794.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
